Through Hole Part Has Stencil Info in Pad Stack

 Post Reply Post Reply
Author
Message
PLTcbv View Drop Down
Advanced User
Advanced User


Joined: 21 Aug 2012
Location: the Netherlands
Status: Offline
Points: 134
Post Options Post Options   Thanks (0) Thanks(0)   Quote PLTcbv Quote  Post ReplyReply Direct Link To This Post Topic: Through Hole Part Has Stencil Info in Pad Stack
    Posted: 25 Sep 2014 at 1:37am
If I create a Through Hole part with the LE Lite 2014.11 and do an Expedition ASCII out the part gets stencil information in the Padstack.

Maybe this is because it is marked as Surface mount.

Stencil Width can be selected in the terminal window when building a part.



For normal Through Hole parts this is not necessary.
Only for PIP (Pin In Paste) parts.
Please make it selectable to switch it on/off.

Wim.
Back to Top
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5719
Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 25 Sep 2014 at 10:50am

The Through-hole pad stack defaults to No Paste Mask.

However, if you want Paste Mask for "Pin-In-Paste" technology, simply add a Paste Mask value.


Stay connected - follow us! X - LinkedIn
Back to Top
PLTcbv View Drop Down
Advanced User
Advanced User


Joined: 21 Aug 2012
Location: the Netherlands
Status: Offline
Points: 134
Post Options Post Options   Thanks (0) Thanks(0)   Quote PLTcbv Quote  Post ReplyReply Direct Link To This Post Posted: 26 Sep 2014 at 12:20am

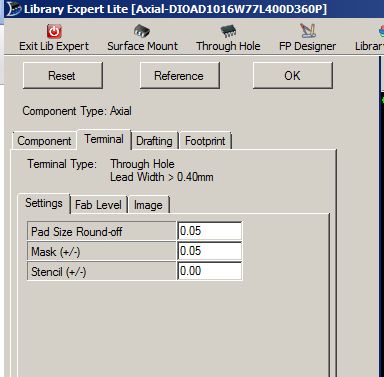

This is the default and it creates a Paste Mask.
This is in Library Expert Lite 2014.11
