magnus.lictor Members Profile Send Private Message Find Members Posts Add to Buddy List Advanced User Joined: 27 Aug 2012 Location: Amsterdam, NL Status: Offline Points: 62	Post Options Post Reply Quote magnus.lictor Report Post Thanks(0) Quote Reply Topic: SOT143 Land Pattern? Posted: 16 Mar 2016 at 1:00am

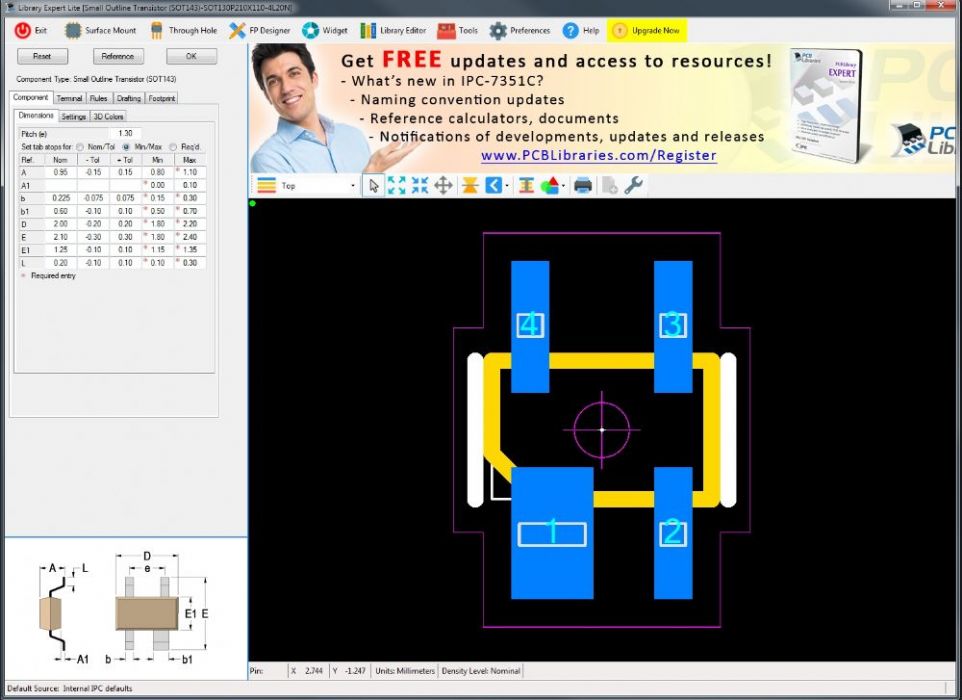

	I am trying to create a footprint for a SOT143. According to the picture that shows in Library Expert lite (2016-2) has the big pin on the lower right side. The actual component (ADM6711) also has the big pin on the lower right side as in the picture. If you fill in the numbers this is what you will get a pattern with the big pin is on the lower left side of the generated footprint. Am I missing a setting i should make before generating the landpattern or is the generated pattern just "Not Correct"?



Ian S Members Profile Send Private Message Find Members Posts Add to Buddy List Advanced User Joined: 21 Aug 2014 Status: Offline Points: 67	Post Options Post Reply Quote Ian S Report Post Thanks(0) Quote Reply Posted: 16 Mar 2016 at 1:55am

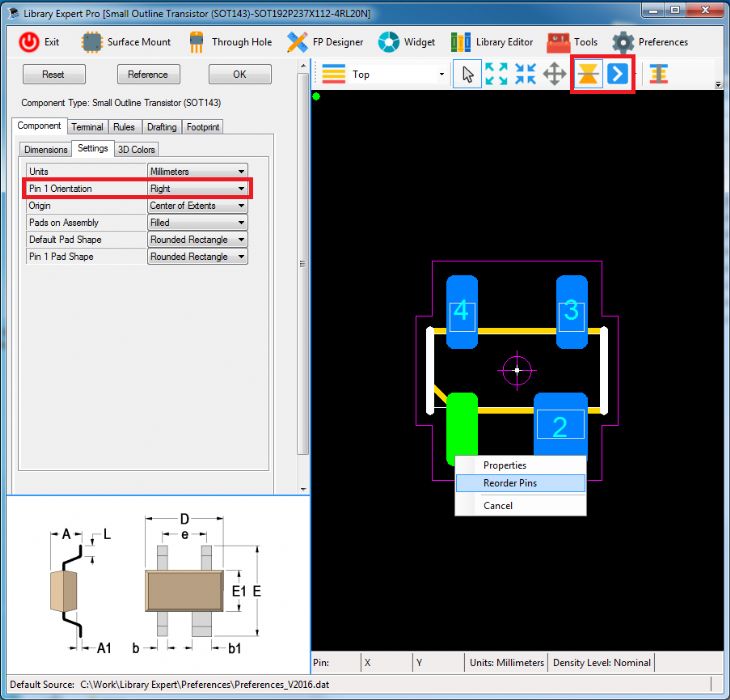

	I am using the Pro version but am assuming the same functionality is present in Lite. Refer to the image below and try the following: 1. Click the Mirror icon. 2. Set 'Pin 1 Orientation' to Right from the Blue Arrow icon drop-down (or from Settings menu; click OK if selecting Right from Settings) 3. In the footprint view, select the pin that needs to be pin 1 and right mouse button (RMB) click and select 'Reorder Pins' 4. Renumber each pin in sequence and then RMB click and select 'Done Reordering' to finish.

Tom H Members Profile Send Private Message Find Members Posts Add to Buddy List Admin Group Joined: 05 Jan 2012 Location: San Diego, CA Status: Offline Points: 5718	Post Options Post Reply Quote Tom H Report Post Thanks(0) Quote Reply Posted: 16 Mar 2016 at 4:59am
	The pictures in the dimensional thumbnail picture in the lower left corner is the "Bottom View". But Mirror button will flip the part and Reorder pins will get you any pin assignment you want. Does this answer your question?
	Stay connected - follow us! X - LinkedIn

magnus.lictor Members Profile Send Private Message Find Members Posts Add to Buddy List Advanced User Joined: 27 Aug 2012 Location: Amsterdam, NL Status: Offline Points: 62	Post Options Post Reply Quote magnus.lictor Report Post Thanks(0) Quote Reply Posted: 18 Mar 2016 at 2:51am
	Thanks guy's, That cleared it all. Probably should use the tool more often.
