Solder Mask to Legend

 Post Reply Post Reply
Author
Message
Batiskaff View Drop Down
Advanced User
Advanced User


Joined: 30 Apr 2018
Status: Offline
Points: 65
Post Options Post Options   Thanks (0) Thanks(0)   Quote Batiskaff Quote  Post ReplyReply Direct Link To This Post Topic: Solder Mask to Legend
    Posted: 03 Sep 2018 at 1:44am
Hello all,

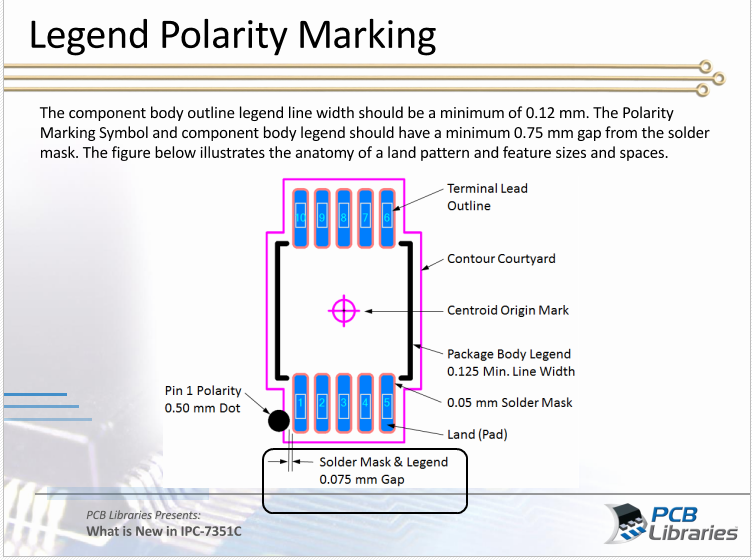

Can anybody explain me, how i can control Solder Mask to Legend Gap, as displayed on this image.

Have PCB Library any tool for this or only manually?


Back to Top
Back to Top
Batiskaff View Drop Down
Advanced User
Advanced User


Joined: 30 Apr 2018
Status: Offline
Points: 65
Post Options Post Options   Thanks (0) Thanks(0)   Quote Batiskaff Quote  Post ReplyReply Direct Link To This Post Posted: 03 Sep 2018 at 2:25am
By standard, Is this gap for Polarity Marker or for all legend?
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5719
Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 03 Sep 2018 at 8:15am
Different companies use different solder mask swells. You must add your Swell + the Solder Mask Clearance to determine the total Pad to Legend Clearance.

For Library Expert Enterprise, it is a one time setting in Preferences > Drafting > Legend > Clearance

For Library Expert Pro, you must manually change the clearance value in the calculator "Drafting" tab Clearance for every part you create.
