Rounded Rectangle and D-shaped Pads for Altium

 Post Reply Post Reply
Author
Message
Ryan Rutledge View Drop Down
Active User
Active User


Joined: 05 Feb 2014
Status: Offline
Points: 24
Post Options Post Options   Thanks (1) Thanks(1)   Quote Ryan Rutledge Quote  Post ReplyReply Direct Link To This Post Topic: Rounded Rectangle and D-shaped Pads for Altium
    Posted: 12 Mar 2014 at 3:19pm

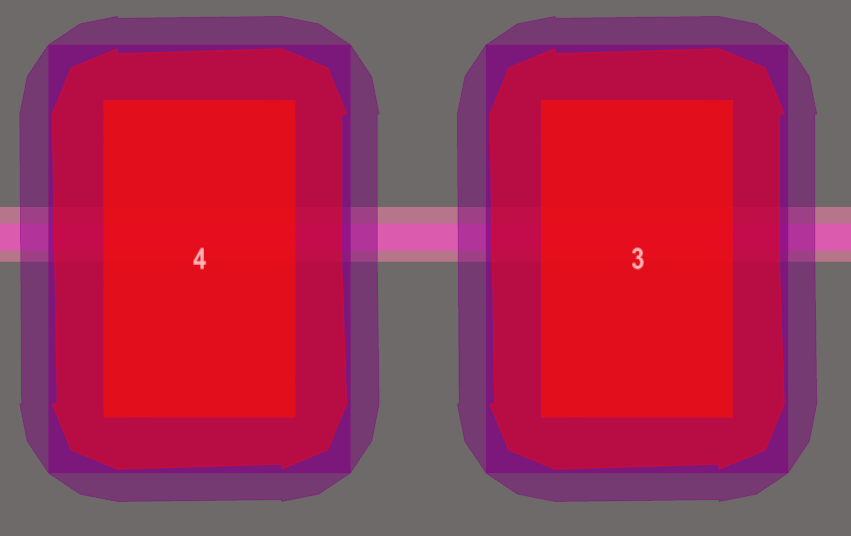

Rectangle, round, and oblong pads come through OK, but rounded rectangle and D-shaped are atrociously disfigured. I am following the recommended Altium Designer output settings as found in the help files.

Perhaps PADS 2005.2 and 2007.0 do not support these pad shapes, but these results are pretty bad. The pad shape is manually created with poor resolution, along with the expanded solder mask shape.

At least the rounded rectangle shape has been supported by Altium Designer for all the years I've used it, so I would prefer to not have to restrict myself to rectangle shapes then do an additional touch-up step.




Back to Top
Back to Top
chrisa_pcb View Drop Down
Moderator Group
Moderator Group
Avatar

Joined: 29 Jul 2012
Location: San Diego
Status: Offline
Points: 772
Post Options Post Options   Thanks (1) Thanks(1)   Quote chrisa_pcb Quote  Post ReplyReply Direct Link To This Post Posted: 12 Mar 2014 at 5:02pm

Hi Ryan,

Make sure you select PADS Layout V9.3 ASCII so that it uses native rounded rectangles.

Rounded Rectangle pad shape were introduced in PADS V9.1.

So if you're using PADS Layout V2005.2, rounded rectangle didn't exist yet.

If you're using Altium 13.3 or 14.2 set your default CAD output to PADS Layout V9.3. That is what our new V2014 Library Expert will default to.


Back to Top
Ryan Rutledge View Drop Down
Active User
Active User


Joined: 05 Feb 2014
Status: Offline
Points: 24
Post Options Post Options   Thanks (1) Thanks(1)   Quote Ryan Rutledge Quote  Post ReplyReply Direct Link To This Post Posted: 17 Mar 2014 at 1:07pm
I have FPX 2013.20. Is this the latest?
Back to Top
Nick B View Drop Down
Admin Group
Admin Group


Joined: 02 Jan 2012
Status: Offline
Points: 1909
Post Options Post Options   Thanks (0) Thanks(0)   Quote Nick B Quote  Post ReplyReply Direct Link To This Post Posted: 17 Mar 2014 at 1:45pm

Yes, it's the latest release.


Stay connected - follow us! X - LinkedIn
Back to Top
Ryan Rutledge View Drop Down
Active User
Active User


Joined: 05 Feb 2014
Status: Offline
Points: 24
Post Options Post Options   Thanks (0) Thanks(0)   Quote Ryan Rutledge Quote  Post ReplyReply Direct Link To This Post Posted: 17 Mar 2014 at 2:21pm
Thank you for the correct settings. They worked nicely.
