 Topic: Pad Stack Designer Offset DisabledPosted: 23 Sep 2014 at 5:07am |
|

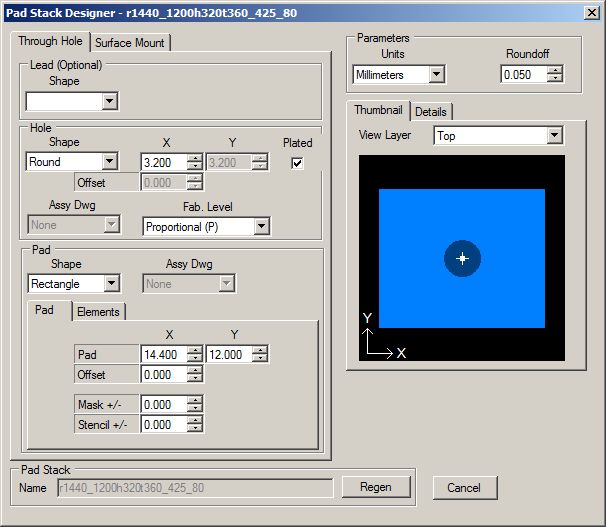

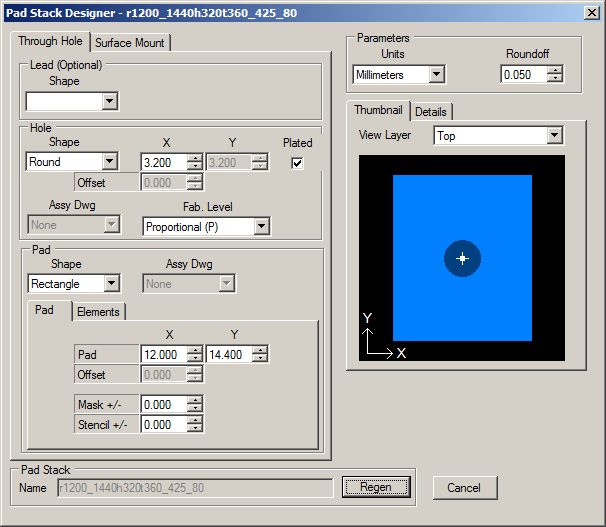

In Pad Stack Designer Library Expert Lite 2014.11 this happens. When pad Y > X then Offset is disabled.  When pad X > Y then Offset is enabled.  Why? |
|
 |
|
|
|
|
Tom H
Admin Group
Joined: 05 Jan 2012 Location: San Diego, CA Status: Offline Points: 5774 |
Post Options
Thanks(0)
Quote Reply
Posted: 23 Sep 2014 at 6:11am |
|
Because the Offset is under the "X" column. If you want to offset the hole, X must be greater than Y. You can always rotate the pad stack. |
|
|
|
|
Jeff.M
Admin Group
Joined: 16 May 2012 Location: San Diego Status: Offline Points: 481 |
Post Options
Thanks(0)
Quote Reply
Posted: 23 Sep 2014 at 7:00am |
|
Offset is only available in the X axis. As such X must exceed Y.
|
|
|
|
|
