Option to Enable/Disable Pin One Silk and Assy
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
josanche View Drop Down
Active User
Active User
Avatar

Joined: 08 Aug 2013
Location: ATX
Status: Offline
Points: 24 		Post Options Post Options   Thanks (0) Thanks(0)   Quote josanche Quote  Post ReplyReply Direct Link To This Post Topic: Option to Enable/Disable Pin One Silk and Assy
    Posted: 06 Feb 2015 at 10:02am

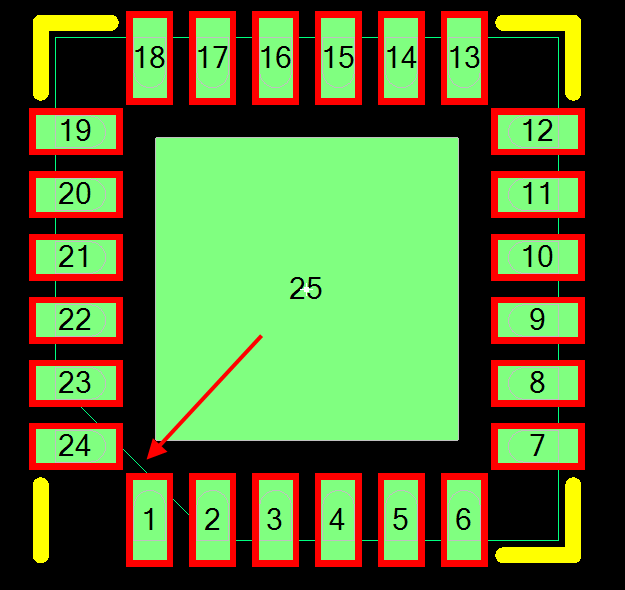

Hi, is there any chance we can have the option to enable/disable the assembly outline chamfer?

My company doesn't utilize this, so each time I have to delete the assy outline within the cell editor (expedition) and recreate without. Quite inefficient :(





As well as the silkscreen outline pin one indicator (in this case the removal of a line from the silk outline)?

I always have to re-create the silkscreen in that corner fix this, and it would be nice if I had to option to turn it off so it would leave the silk intact identical to the other three corners.
Back to Top
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5716 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 06 Feb 2015 at 10:10am

You can download the latest V2015.08 pre-release here - www.pcblibraries.com/downloads

New feature that allows you to output the component body and terminal leads separately.

Instead of using the Assembly Outline, use the Component Outline (no polarity). You can adjust the line width and the layer assignment.

As far as the Silkscreen Outline, there are new standard guidelines that prohibit the silkscreen to be outside the courtyard or under the component package. For "Bottom Only Terminal" components, the absence of silkscreen is the polarity marker. What do you do to fix the Polarity Marker?


Stay connected - follow us! X - LinkedIn
Back to Top
josanche View Drop Down
Active User
Active User
Avatar

Joined: 08 Aug 2013
Location: ATX
Status: Offline
Points: 24 		Post Options Post Options   Thanks (0) Thanks(0)   Quote josanche Quote  Post ReplyReply Direct Link To This Post Posted: 09 Feb 2015 at 9:24am
Does the "Component Outline" exist in expedition? And if so what is it called? I used it in Library expert per your example and there is nothing that imported for me on the mentor side.

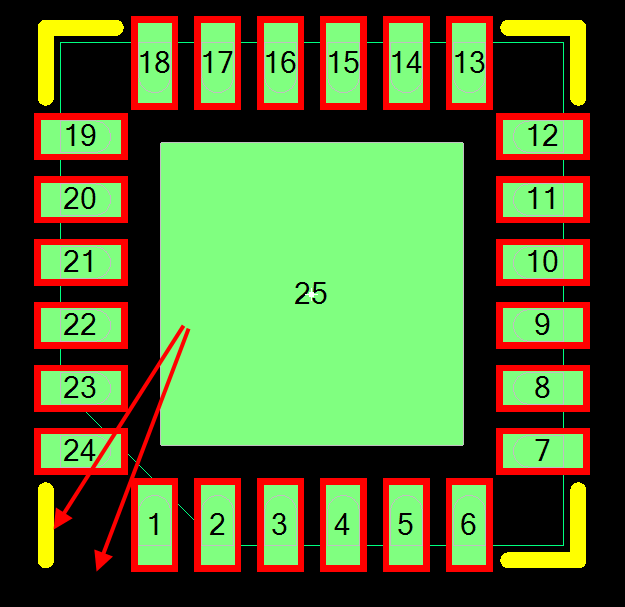

To "fix" the polarity marker on our end (for the above example), we just add the missing silk line back. We silk the letter "o" as our pin one indicator similar to your pin 1 dot and therefor have no need for the outline itself to reference pin 1.

We love the program and would love it even more if some of these functions had the ability to be toggled on or off.

Thanks!!!!
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5716 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 10 Feb 2015 at 9:21am

OK, in V2015.08 we have 3 new toggle preferences - Available later today

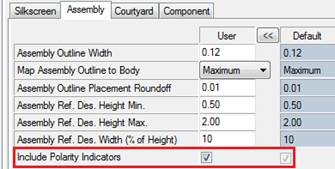

Drafting > Assembly > Polarity Indicator, new button to toggle the assembly outline polarity chamfer

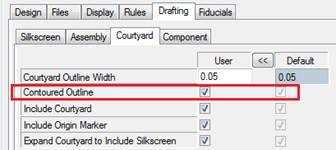

Drafting > Courtyard > Contour Courtyards, new button to toggle between Contour and Rectangle courtyards


Drafting > Silkscreen > Polarity Indicator, new button to toggle the silkscreen outline polarity chamfer
Stay connected - follow us! X - LinkedIn
Back to Top
