IPC-7351 Padstack Naming Convention
 Post Reply Post Reply Page  <1 234
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5718 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 29 Apr 2020 at 7:31am
AleksMK, do you have a copy of the pad stack naming convention document?

You can download it here - www.pcblibraries.com/downloads
Stay connected - follow us! X - LinkedIn
Back to Top
Back to Top
AleksMK View Drop Down
New User
New User


Joined: 31 Mar 2020
Status: Offline
Points: 4 		Post Options Post Options   Thanks (0) Thanks(0)   Quote AleksMK Quote  Post ReplyReply Direct Link To This Post Posted: 29 Apr 2020 at 7:56am
Hi Tom,

Yes, I do have the document, the question arose from reading that document.  As I quoted, It's not very clear to me how the naming for my padstack should be? Any advice on that?

Thanks!
Aleks
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5718 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 29 Apr 2020 at 9:34am
There is a pad stack naming issue with the current V2019 Library Expert for SMD pads that are defined on both the Top and Bottom layers. This issue will be fixed in V2020 coming out next month.

To create a complex pad stack, you need the FP Designer feature and that does not come with the free Library Expert Pro (yet), but next month when V2020 is released, the Library Expert Pro will have 100% full featured program (just like the Enterprise version) and support these CAD tools -

  1. CADint
  2. DesignSpark
  3. DipTrace
  4. Eagle
  5. KiCad
  6. Pantheon
  7. Proteus
  8. Pulsonix
  9. McCAD
  10. SoloPCB
  11. Target 3001!
  12. Ultiboard
So even if you don't use any of these CAD tools you can still download the program for free and use it as an advanced Land Pattern Calculator.

Also, starting next week we start giving away the full featured Library Expert Enterprise for free. Just pay the yearly maintenance to get all the updates and technical support for the year. Pick any CAD tool and get our new Cloud License for a yearly lease at 20% of list price.

Bottom line is that you need FP Designer to create custom pad stacks and we're either going to give that away for free or lease it at an affordable price point.

The software program needs to work perfect to take away any guessing and confusion.

Also, putting a SMD pad on the top & bottom layers is rare. What application is this for?
Stay connected - follow us! X - LinkedIn
Back to Top
AleksMK View Drop Down
New User
New User


Joined: 31 Mar 2020
Status: Offline
Points: 4 		Post Options Post Options   Thanks (0) Thanks(0)   Quote AleksMK Quote  Post ReplyReply Direct Link To This Post Posted: 29 Apr 2020 at 9:44am
Hi Tom,

Thanks for all the info, although a bit unrelated to my question :-) The application for which I need this padstack is creating test points in OrCAD PCB Designer Professional, where the padstack need to be defined on the layer where you are creating the test point. So if I want a test point on the bottom layer, I need to have the bottom layer defined in my padstack. The padstack is not being mirrored when adding testpoints, hence this requirement.

If I may re-iterate my question: using the padstack naming convention that I have downloaded from PCB Libraries, what is the correct name to name a padstack which will have a circular land patter on the bottom layer only 1.2mm in size, with a solder mask on the bottom layer only with 1.3mm opening and no bottom paste mask layer?

Cheers
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5718 		Post Options Post Options   Thanks (1) Thanks(1)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 29 Apr 2020 at 10:08am

Modifiers that are used when pad stack features are different than the defaults

In instances where shapes are different this becomes a two letter code with the "modifier" first followed by the land shape letter.

x = Special modifier used alone or following other modifiers for lands on opposite side to primary layer land dimension

So the "x" comes before the shape character.
Stay connected - follow us! X - LinkedIn
Back to Top
AleksMK View Drop Down
New User
New User


Joined: 31 Mar 2020
Status: Offline
Points: 4 		Post Options Post Options   Thanks (0) Thanks(0)   Quote AleksMK Quote  Post ReplyReply Direct Link To This Post Posted: 29 Apr 2020 at 10:43am
Thanks! So I will name my padstack xc120mx130px0.

Cheers!
Aleks
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5718 		Post Options Post Options   Thanks (1) Thanks(1)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 07 Apr 2024 at 2:30pm

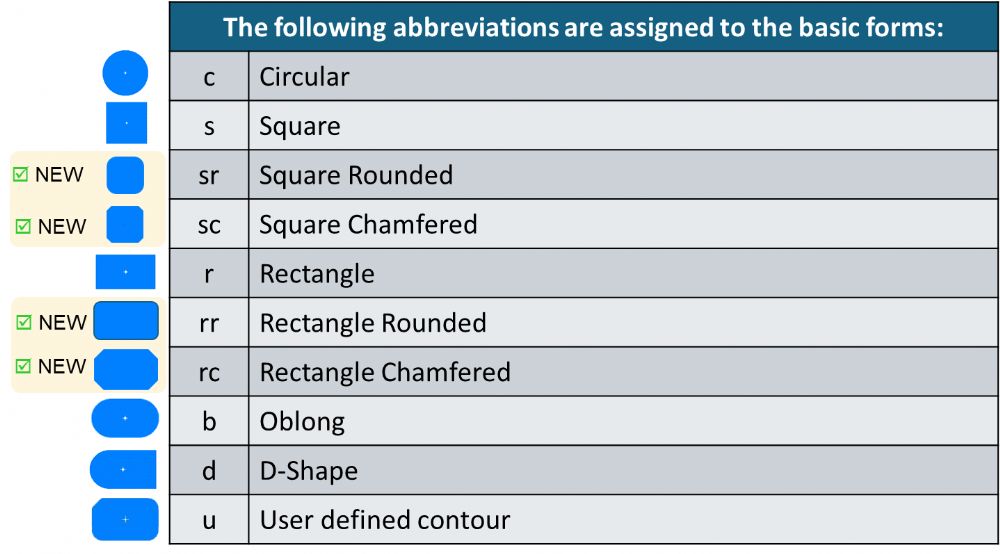

Updated Pad Stack Naming Convention released in IPC-7352.

The first letter in the pad stack name describes the shape of the pad on the outer layers of the circuit board. Small letters are used. Note: “b” = Oblongs, because the letter “o” could easily be confused with the number “0”.
Stay connected - follow us! X - LinkedIn
