FP Designer Shape Color Mismatch |
Post Reply ![]() |
Author | |
ChrisChris ![]() Advanced User ![]() Joined: 03 Nov 2021 Status: Offline Points: 92 |
![]() ![]() ![]() ![]() ![]() Posted: 15 Feb 2022 at 6:39pm |
Hello,

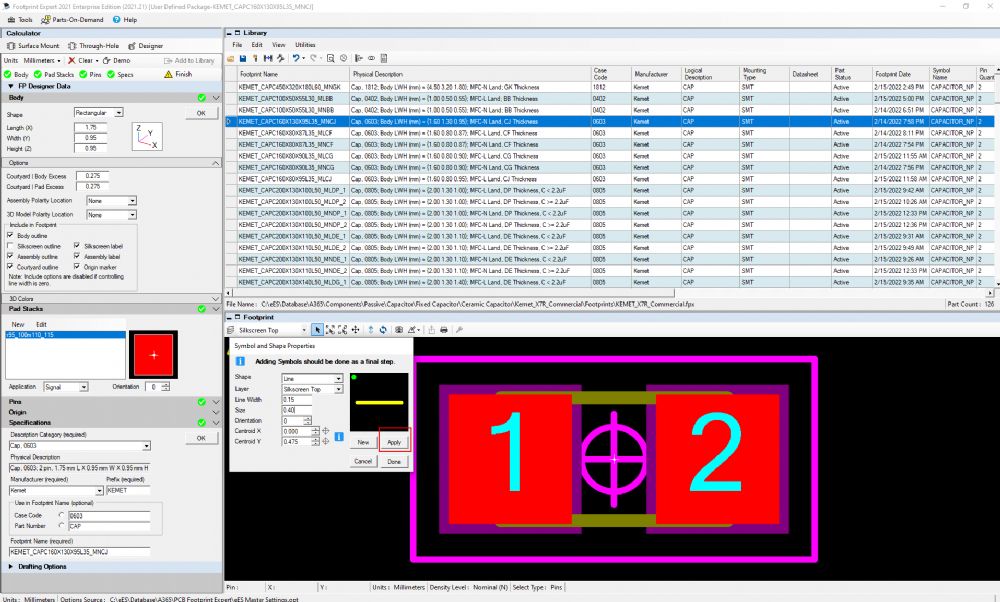

Why I manually add a line on the silkscreen layer in FP Designer, it is drawn green despite my silkscreen layer being set to yellow in my master options. All of the other footprints for which I've checked Include Silkscreen Outline in FP Designer display as yellow. It can be seen here that the dialog box is showing the preview in yellow, but apply makes it green. Before hitting apply.... ![]() After hitting apply... ![]() Thanks, Chris
|
|
![]() |
|
![]() |
|
ChrisChris ![]() Advanced User ![]() Joined: 03 Nov 2021 Status: Offline Points: 92 |
![]() ![]() ![]() ![]() ![]() |
Ugh... ignore. Once I clicked off the Footprint screen it changed to yellow!?
|
|
![]() |
