Footprint For Chip Type Crystal |
Post Reply
|
| Author | |
chads108
Active User
Joined: 17 Oct 2012 Location: Plano, TX Status: Offline Points: 35 |
 Post Options
 Thanks(0)
 Quote Reply
 Topic: Footprint For Chip Type CrystalPosted: 25 Oct 2012 at 12:03pm |
|

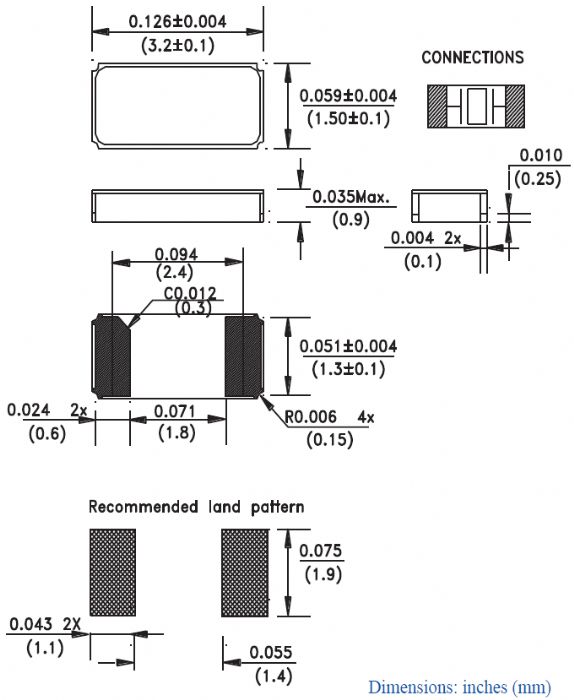

I have a crystal that more resembles a chip type component than the crystal component in Footprint Wizard. It actually has concave corners like an oscillator, but only has 2 pins - http://www.abracon.com/Resonators/ABS07.pdf How would you handle this situation? |
|
 |
|
|
|
|
Tom H
Admin Group
Joined: 05 Jan 2012 Location: San Diego, CA Status: Offline Points: 5752 |
Post Options
Thanks(0)
Quote Reply
Posted: 25 Oct 2012 at 12:21pm |
|
This is a new component family. 2-pin Corner Concave Crystal. I would use the mfr. recommended pattern.
 |
|
|
|
|
chads108
Active User
Joined: 17 Oct 2012 Location: Plano, TX Status: Offline Points: 35 |
Post Options
Thanks(0)
Quote Reply
Posted: 25 Oct 2012 at 12:23pm |
|
What about a naming convention for this? Do you forsee there being something specific for this?
|
|
|
|
|
Tom H
Admin Group
Joined: 05 Jan 2012 Location: San Diego, CA Status: Offline Points: 5752 |
Post Options
Thanks(0)
Quote Reply
Posted: 25 Oct 2012 at 12:31pm |
|
For right now I would call it - XTAL_ABRACON_ABS07
There is no IPC standard for this package yet. The 1st sort in the library would be on the component family, then the Mfr. and then the part number. |
|
|
|
|
