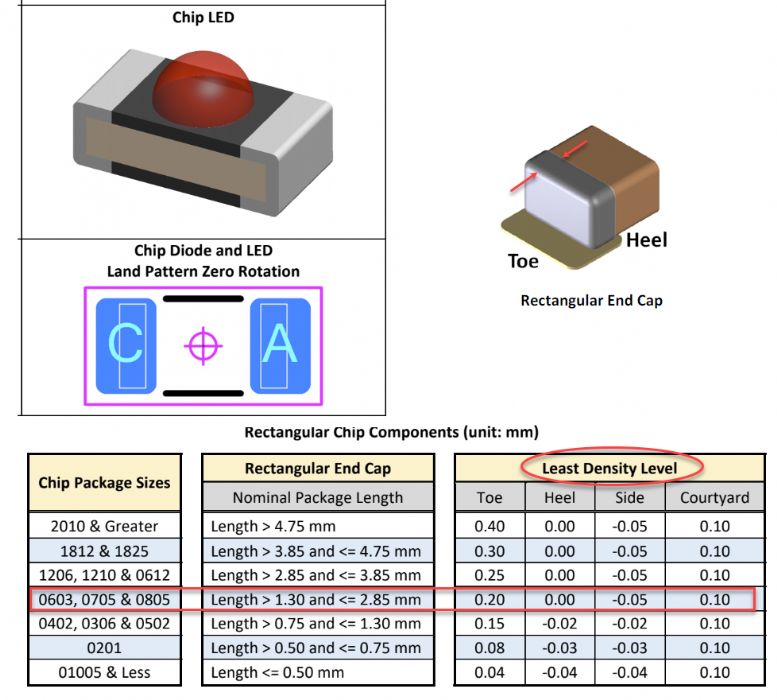

I would like to know what is the proper footprint for a  0603 Chip LED.  I found this on PCB Libraries' website:


So where is Toe measured from? Heel?  And what is Least Density? What is Courtyard?
Back to Top
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5718
Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 27 Jul 2020 at 8:39am
The proper footprint for every surface mount package is derived from the IPC-7351 mathematical model.

Did you download and install the Free Library Expert Pro. No license required and it supports 25 CAD tools and 3D STEP.


Just enter the package dimensions and tolerances to calculate the perfect 0603 footprint.

Stay connected - follow us! X - LinkedIn
Back to Top
jtweaver View Drop Down
New User
New User


Joined: 27 Jul 2020
Status: Offline
Points: 3
Post Options Post Options   Thanks (0) Thanks(0)   Quote jtweaver Quote  Post ReplyReply Direct Link To This Post Posted: 28 Jul 2020 at 7:32am
Thank you,

I have done so, it is very helpful.
