Silkscreen Polarity Marking Pin 1 Indication

 Post Reply Post Reply
Author
Message
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5675
Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Topic: Silkscreen Polarity Marking Pin 1 Indication
    Posted: 07 Apr 2024 at 3:02pm

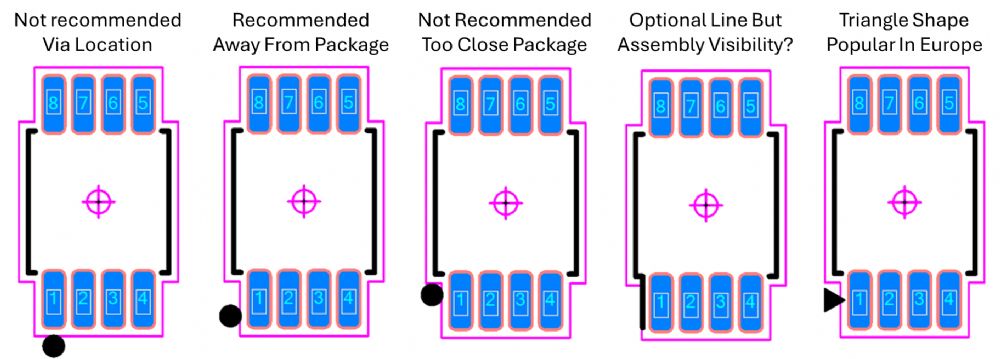

Polarity Marking not necessary for packages that can be inverted during assembly (like a resistor).

The minimum Dot diameter should be 0.40 mm. Anything smaller is too hard to see during the Post Assembly Inspection process.

The range for Dot sizes is 0.40 – 1.00. The Dot diameter should be the same value as the pad width but keep it within the range.

A dot is normally used, but other symbols like square and triangle can be used. On very dense part placement boards, a line drawn the length of pin 1 can be used, but it's hard to identify it as a pin 1 polarity marker.



Stay connected - follow us! X - LinkedIn
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5675
Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 07 Apr 2024 at 3:06pm

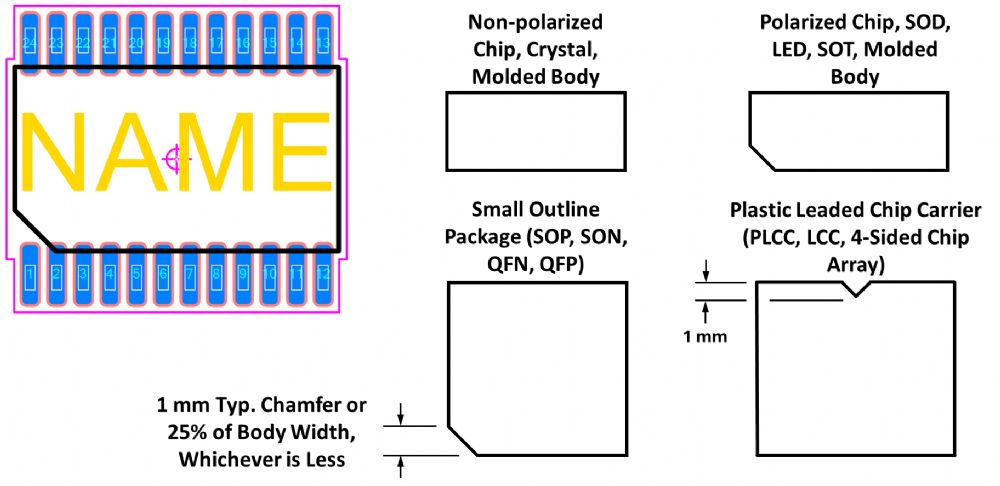

The Assembly Outline is a closed polygon with an assembly reference designator inside it.

The simplest Assembly Polarity Marking Pin 1 Indication is a chamfer in the corner closest to Pin 1.



Stay connected - follow us! X - LinkedIn
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5675
Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 07 Apr 2024 at 3:09pm

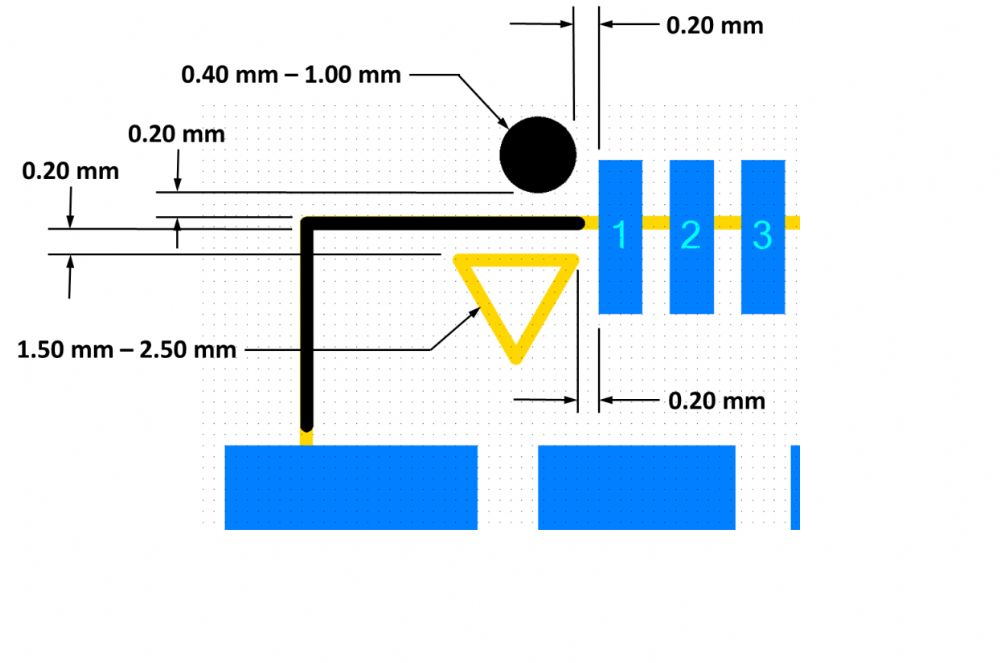

Connector Polarity Marking general guidelines.
