 Topic: Square NO_PROBE For Round Radial PartsPosted: 25 Apr 2016 at 9:31pm |
|
Hi,
Library Expert V2016.03 Allegro Output NO_PROBE area is generated as square instead of Round for Radial LED. Same issue existed in V2015.21 and I posted the problem in forum back then, but it's still not fixed.
 I'm adding a 1.9 mm Excess "NO_PROBE" from component body, component body is circle, then why is "NO_PROBE" coming as square?. I want a ROUND shape for Allegro "NO_PROBE". The same issue exists for round Radial [Electrolytic]. Can you fix this? |
|
 |
|
|
|
|
chrisa_pcb
Moderator Group
Joined: 29 Jul 2012 Location: San Diego Status: Offline Points: 772 |
Post Options
Thanks(0)
Quote Reply
Posted: 29 Apr 2016 at 11:48am |
|
I'll take a look and see if I can come up with a resolution for this. Right now it uses a square because its going to the extents of the particular shape. Its not really based on whether or not its square. I'll see what I can do though.
|
|
|
|
|
Tom H
Admin Group
Joined: 05 Jan 2012 Location: San Diego, CA Status: Offline Points: 5717 |
Post Options
Thanks(0)
Quote Reply
Posted: 29 Apr 2016 at 1:09pm |
|
This issue will be fixed in V2016.04 to be released by Monday May 2. |
|
|
|
|
Tom H
Admin Group
Joined: 05 Jan 2012 Location: San Diego, CA Status: Offline Points: 5717 |
Post Options
Thanks(0)
Quote Reply
Posted: 02 May 2016 at 8:06am |
|
Let us know if V2016.04 fixed your problem. Thanks!
|
|
|
|
|
mahmoodv99
Advanced User
Joined: 16 Jan 2016 Status: Offline Points: 93 |
Post Options
Thanks(0)
Quote Reply
Posted: 06 May 2016 at 5:03am |
Not fixed, still same problem
 |
|
|
|
|
Tom H
Admin Group
Joined: 05 Jan 2012 Location: San Diego, CA Status: Offline Points: 5717 |
Post Options
Thanks(0)
Quote Reply
Posted: 06 May 2016 at 12:32pm |
|

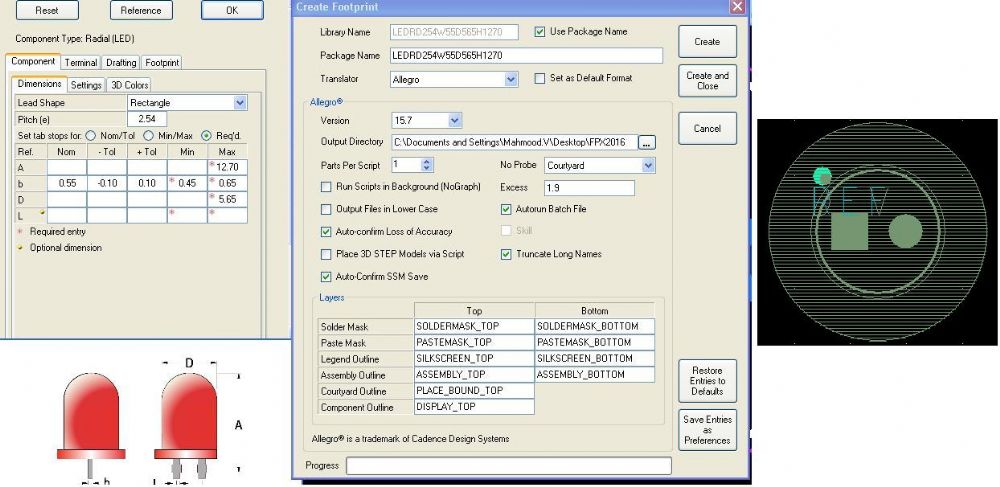

Can you post a picture of what you are getting? Also, V2016.05 pre-release is available here - www.pcblibraries.com/downloads
|
|
|
|
|
chrisa_pcb
Moderator Group
Joined: 29 Jul 2012 Location: San Diego Status: Offline Points: 772 |
Post Options
Thanks(0)
Quote Reply
Posted: 06 May 2016 at 12:54pm |
|
Simply select the Radial LED Reference part and No Probe should be Courtyard. Output to Allegro and it should work. If you're trying to do something other than that, let me know.
|
|
|
|
|
mahmoodv99
Advanced User
Joined: 16 Jan 2016 Status: Offline Points: 93 |
Post Options
Thanks(0)
Quote Reply
Posted: 08 May 2016 at 8:37pm |
|

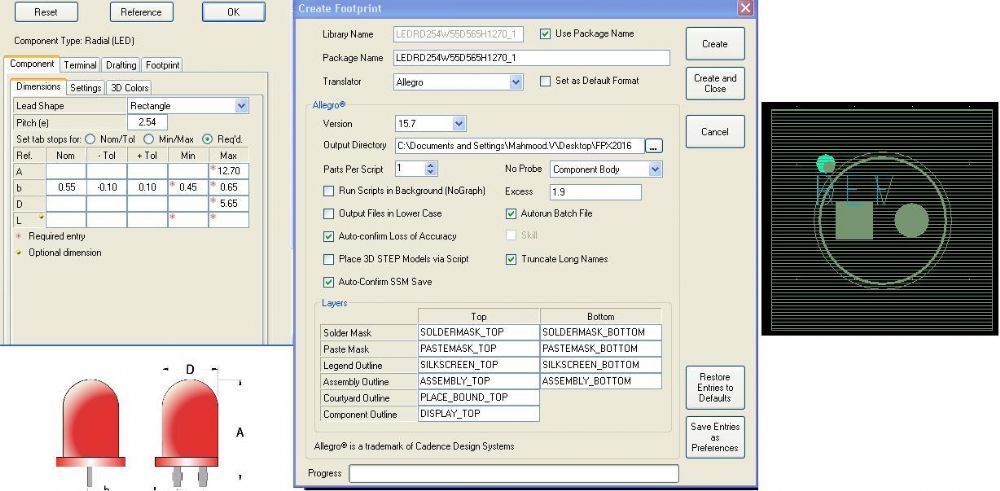

Not OK when selecting No probe excess as Component Body.   |
|
|
|
|
mahmoodv99
Advanced User
Joined: 16 Jan 2016 Status: Offline Points: 93 |
Post Options
Thanks(0)
Quote Reply
Posted: 08 May 2016 at 8:39pm |
|
I want to use Components Body as reference.
Hope you will fix it in next version.
|
|
|
|
|
Tom H
Admin Group
Joined: 05 Jan 2012 Location: San Diego, CA Status: Offline Points: 5717 |
Post Options
Thanks(0)
Quote Reply
Posted: 09 May 2016 at 7:17am |
|
We recommend that you remove the courtyard "Excess" so that it hugs the Footprint Boundary. We cannot change the square NO_PROBE to Round Shape. I notice that you are putting an "Excess" value in your NO_PROBE setting. Just use the Courtyard which is 0.25 mm Excess and add on to that. |
|
|
|
|
