   I'm trying to rename the Pins on a diode from C/A to 1/2 in a molded body using "Right click" -> "Properties" but when changing to a numeric value I get the message "Use 'Pin Reorder' to generate numeric pin names". However 'Pin Reorder' is not available when I right click on the pin. (It comes up fine with e.g. SOT23).
A workaround is to set the family to "polarized capacitor" but I would like to have the pin names to 1 and 2 for the diodes as well.

Author	Message Topic Search Topic Options Post Reply Create New Topic Printable Version Translate Topic
Lekselius Members Profile Send Private Message Find Members Posts Add to Buddy List New User Joined: 10 Apr 2013 Location: Sverige Status: Offline Points: 21	Post Options Post Reply Quote Lekselius Report Post Thanks(0) Quote Reply Topic: Numeric Pin Names on Diode Posted: 22 May 2013 at 1:37am
	I'm trying to rename the Pins on a diode from C/A to 1/2 in a molded body using "Right click" -> "Properties" but when changing to a numeric value I get the message "Use 'Pin Reorder' to generate numeric pin names". However 'Pin Reorder' is not available when I right click on the pin. (It comes up fine with e.g. SOT23). A workaround is to set the family to "polarized capacitor" but I would like to have the pin names to 1 and 2 for the diodes as well.



Tom H Members Profile Send Private Message Find Members Posts Add to Buddy List Admin Group Joined: 05 Jan 2012 Location: San Diego, CA Status: Offline Points: 5717	Post Options Post Reply Quote Tom H Report Post Thanks(0) Quote Reply Posted: 22 May 2013 at 12:42pm

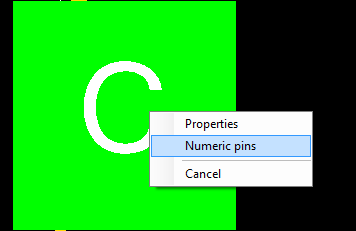

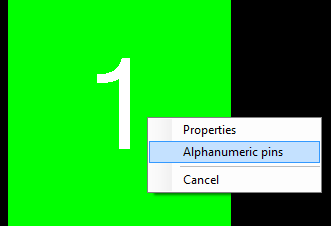

	You need to "Right Mouse Click" on the pads. If the Pad has an Alphabetical name this will appear - If the pad has Numeric pin assignment, this will appear -
