   I've been wondering over the naming of certain LED footprints. Manufacturers call them PLCC-4, PLCC-6 etc etc. They have pins only on two sides and when compared to the typical PLCC footprints found in for example FPX they show pins on all four sides. Those particular PLCC footprints also appear to fit into sockets rather than directly soldered to the PCB. Looking through the FPX list of footprint types I suppose the Small Outline L-Lead fits better.

Which one is correct and what should the footprint actually be named?

Examples:

http://www.avagotech.com/docs/AV02-2592EN
http://www.vishay.com/doc?81183

Author	Message Topic Search Topic Options Post Reply Create New Topic Printable Version Translate Topic
HenricE Members Profile Send Private Message Find Members Posts Add to Buddy List Active User Joined: 20 Nov 2013 Location: Sweden Status: Offline Points: 28	Post Options Post Reply Quote HenricE Report Post Thanks(1) Quote Reply Topic: LED PLCC footprints Posted: 20 Nov 2013 at 6:30am
	I've been wondering over the naming of certain LED footprints. Manufacturers call them PLCC-4, PLCC-6 etc etc. They have pins only on two sides and when compared to the typical PLCC footprints found in for example FPX they show pins on all four sides. Those particular PLCC footprints also appear to fit into sockets rather than directly soldered to the PCB. Looking through the FPX list of footprint types I suppose the Small Outline L-Lead fits better. Which one is correct and what should the footprint actually be named? Examples: http://www.avagotech.com/docs/AV02-2592EN http://www.vishay.com/doc?81183



Tom H Members Profile Send Private Message Find Members Posts Add to Buddy List Admin Group Joined: 05 Jan 2012 Location: San Diego, CA Status: Offline Points: 5716	Post Options Post Reply Quote Tom H Report Post Thanks(2) Quote Reply Posted: 20 Nov 2013 at 7:09am

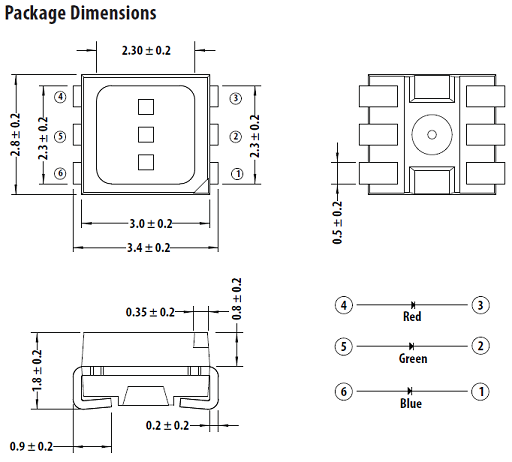

	This Lead Form is "L-Bend" - (not PLCC) We just added a "L-Bend" component lead for IC's. It's called the SOL component family. Looks like we need to add a drop down to include other component families like LED. There is also a "L-Bend" lead for Oscillators.
	Stay connected - follow us! X - LinkedIn

HenricE Members Profile Send Private Message Find Members Posts Add to Buddy List Active User Joined: 20 Nov 2013 Location: Sweden Status: Offline Points: 28	Post Options Post Reply Quote HenricE Report Post Thanks(1) Quote Reply Posted: 20 Nov 2013 at 7:15am
	Thanks for the quick reply! The SOL component family did look a lot more like the actual LEDs. It's strange how the manufacturers have chosen to call them PLCC.
