 Topic: Footprint Is Not Correct...Posted: 16 Apr 2013 at 4:56pm |
|

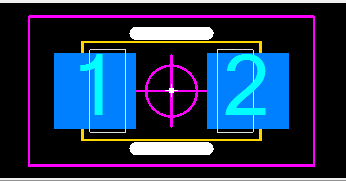

When I load the library SM_2012 and load footprint CAPC1608X86 it looks like

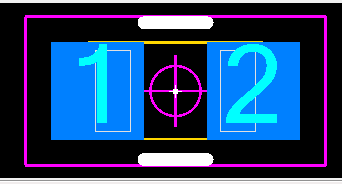

 If you hit OK it remains the same. If I change the height to 87 from 86 then it looks like  Is there are reason the pad sizes change when it is forced to recalculate the footprint ?
|
|
 |
|
|
|
|
Tom H
Admin Group
Joined: 05 Jan 2012 Location: San Diego, CA Status: Offline Points: 5717 |
Post Options
Thanks(0)
Quote Reply
Posted: 16 Apr 2013 at 6:18pm |
|

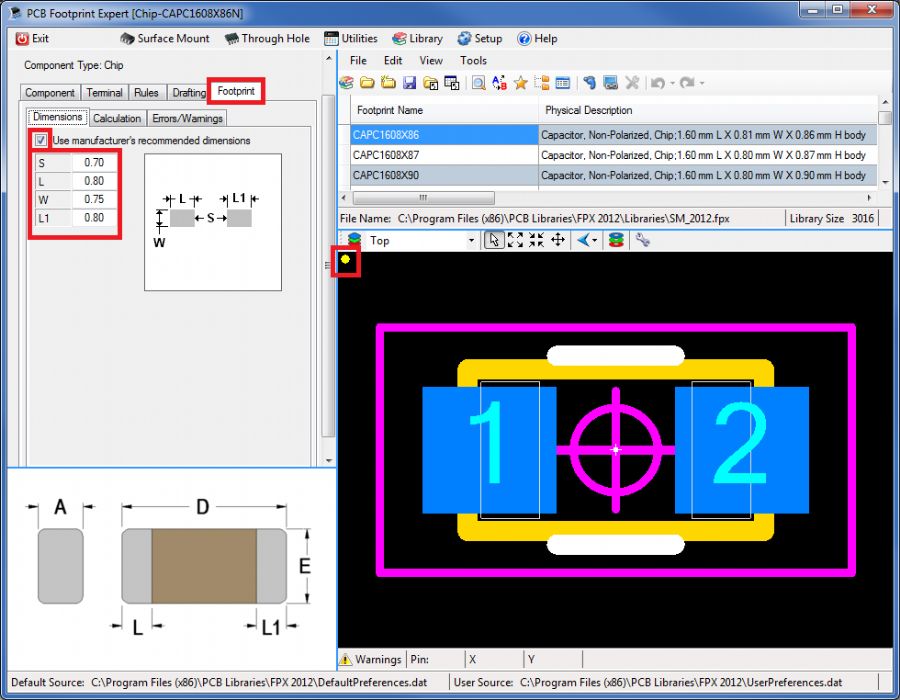

We manually entered the component manufacturer recommended footprint dimensions in over 50% of the SM_2012 parts. You can instantly recognize a mfr. recommended pattern by the Yellow Dot warning when you open the FPX part into the Viewer.
As soon as you enter a new component package dimension, the program automatically uses your Preferences and not the component mfr. pattern. Read the attached IMPORTANT! document below.  Here is a document that explains the FPX file features - IMPORTANT!_FPX_Guidelines.zip |
|
|
|
|
lalexman
Expert User
Joined: 30 Jul 2012 Status: Offline Points: 679 |
Post Options
Thanks(0)
Quote Reply
Posted: 16 Apr 2013 at 9:15pm |
|
Thanks Tom.
|
|
|
|
|
