I am trying to generate a 3D model for a SOT65P210X110-6M.

The 3D model is generated but the 3 leads on the right side of the package are malformed.

I am using Libraries Expert Pro version: 2016.06

Author	Message Topic Search Topic Options Post Reply Create New Topic Printable Version Translate Topic
rcarlson Members Profile Send Private Message Find Members Posts Add to Buddy List New User Joined: 30 Jul 2012 Status: Offline Points: 6	Post Options Post Reply Quote rcarlson Report Post Thanks(0) Quote Reply Topic: Xpedition SOT23 3D STEP Model Pins Posted: 20 Jun 2016 at 2:19pm
	I am trying to generate a 3D model for a SOT65P210X110-6M. The 3D model is generated but the 3 leads on the right side of the package are malformed. I am using Libraries Expert Pro version: 2016.06



Tom H Members Profile Send Private Message Find Members Posts Add to Buddy List Admin Group Joined: 05 Jan 2012 Location: San Diego, CA Status: Offline Points: 5774	Post Options Post Reply Quote Tom H Report Post Thanks(0) Quote Reply Posted: 20 Jun 2016 at 2:32pm

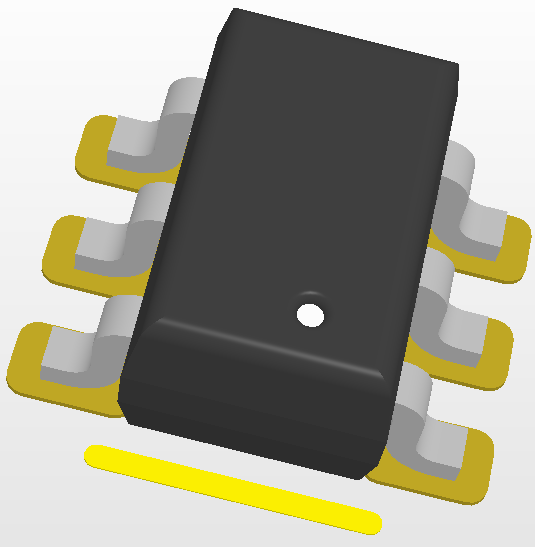

	Here is our version of SOT65P210X110-6M from the SM FPX file.
	Stay connected - follow us! X - LinkedIn

Tom H Members Profile Send Private Message Find Members Posts Add to Buddy List Admin Group Joined: 05 Jan 2012 Location: San Diego, CA Status: Offline Points: 5774	Post Options Post Reply Quote Tom H Report Post Thanks(0) Quote Reply Posted: 21 Jun 2016 at 8:30am
	Can you send us the FPX file for the SOT23 part? We think there is a wrong component dimension or we need to thin the lead frame thickness out.
	Stay connected - follow us! X - LinkedIn

rcarlson Members Profile Send Private Message Find Members Posts Add to Buddy List New User Joined: 30 Jul 2012 Status: Offline Points: 6	Post Options Post Reply Quote rcarlson Report Post Thanks(0) Quote Reply Posted: 22 Jun 2016 at 7:15am

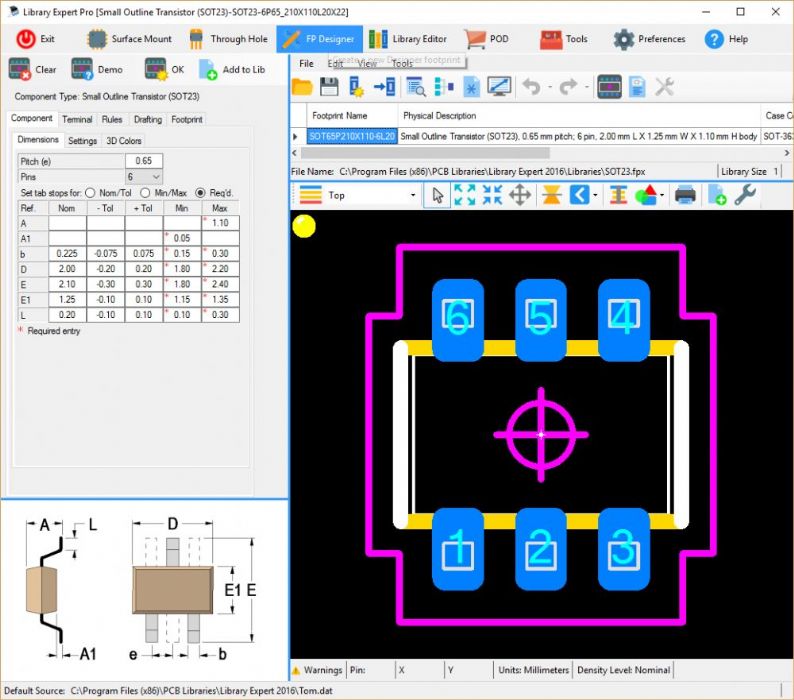

	uploads/546/SOT65P210X110-6L20.fpx This is what the model looks like in Mentor VX.1.1

Tom H Members Profile Send Private Message Find Members Posts Add to Buddy List Admin Group Joined: 05 Jan 2012 Location: San Diego, CA Status: Offline Points: 5774	Post Options Post Reply Quote Tom H Report Post Thanks(0) Quote Reply Posted: 22 Jun 2016 at 7:58am

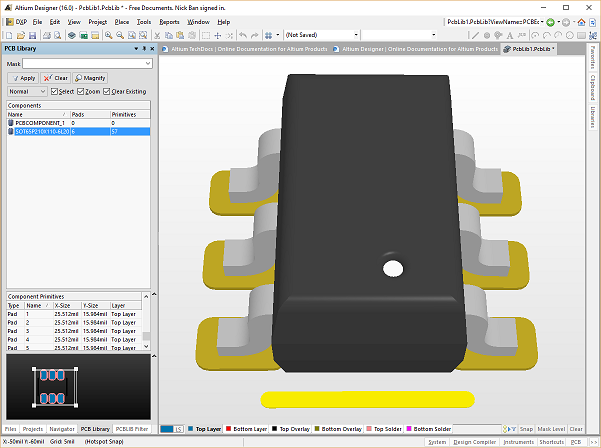

	Please discuss this issue with our 3D STEP programmer, Chris Arnold. I downloaded your FPX file that you posted and imported it into Altium - Here is what it looks like in Library Expert V2016.07 -
	Stay connected - follow us! X - LinkedIn

rcarlson Members Profile Send Private Message Find Members Posts Add to Buddy List New User Joined: 30 Jul 2012 Status: Offline Points: 6	Post Options Post Reply Quote rcarlson Report Post Thanks(0) Quote Reply Posted: 22 Jun 2016 at 9:30am
	I am not sure the screen shot of the model came through so I am attracting a word document with the picture.uploads/546/SOT65P210X110-6_3D_Model.docx

chrisa_pcb Members Profile Send Private Message Find Members Posts Add to Buddy List Moderator Group Joined: 29 Jul 2012 Location: San Diego Status: Offline Points: 772	Post Options Post Reply Quote chrisa_pcb Report Post Thanks(0) Quote Reply Posted: 22 Jun 2016 at 9:46am
	Please Send the STEP file that was generated.

Tom H Members Profile Send Private Message Find Members Posts Add to Buddy List Admin Group Joined: 05 Jan 2012 Location: San Diego, CA Status: Offline Points: 5774	Post Options Post Reply Quote Tom H Report Post Thanks(0) Quote Reply Posted: 22 Jun 2016 at 9:58am
	Yes, please email us your .STEP file so we can open it in SolidWorks and other tools.
	Stay connected - follow us! X - LinkedIn

rcarlson Members Profile Send Private Message Find Members Posts Add to Buddy List New User Joined: 30 Jul 2012 Status: Offline Points: 6	Post Options Post Reply Quote rcarlson Report Post Thanks(0) Quote Reply Posted: 22 Jun 2016 at 11:09am
	Here is the STEP file uploads/546/SOT65P210X110-6L20.zip

chrisa_pcb Members Profile Send Private Message Find Members Posts Add to Buddy List Moderator Group Joined: 29 Jul 2012 Location: San Diego Status: Offline Points: 772	Post Options Post Reply Quote chrisa_pcb Report Post Thanks(0) Quote Reply Posted: 22 Jun 2016 at 11:40am
	I've run your STEP file through 3 other viewers (SolidWorks, Altium, and FreeCAD) and all show a perfect part. As such, I believe this is a bug in your viewer. Exactly which one are you using?
