Where is the "Build" button?
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
KipUp View Drop Down
New User
New User
Avatar

Joined: 10 Jul 2012
Location: Redondo Beach
Status: Offline
Points: 9 		Post Options Post Options   Thanks (0) Thanks(0)   Quote KipUp Quote  Post ReplyReply Direct Link To This Post Topic: Where is the "Build" button?
    Posted: 13 Mar 2015 at 9:53am
I'm using the 2015.09 version of Library Expert Lite.
Where is the wrench/build button? Am I missing something?
I thought The "Lite" tool was able to output several CAD formats.
Back to Top
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5718 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 13 Mar 2015 at 9:56am
V2015.09 has a "Build Part" icon in the Viewer Toolbar. It's the last button.

The Library Expert Lite comes with 21 CAD tool interfaces and every version of every CAD tool.

Stay connected - follow us! X - LinkedIn
Back to Top
KipUp View Drop Down
New User
New User
Avatar

Joined: 10 Jul 2012
Location: Redondo Beach
Status: Offline
Points: 9 		Post Options Post Options   Thanks (0) Thanks(0)   Quote KipUp Quote  Post ReplyReply Direct Link To This Post Posted: 13 Mar 2015 at 10:03am
Hi Tom, Thanks for the quick response.
My toolbar is missing the "build" button. ....Pad Stacks, Print are the last 2 buttons to the right.
Maybe I should download the "Lite" version again?
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5718 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 13 Mar 2015 at 10:05am

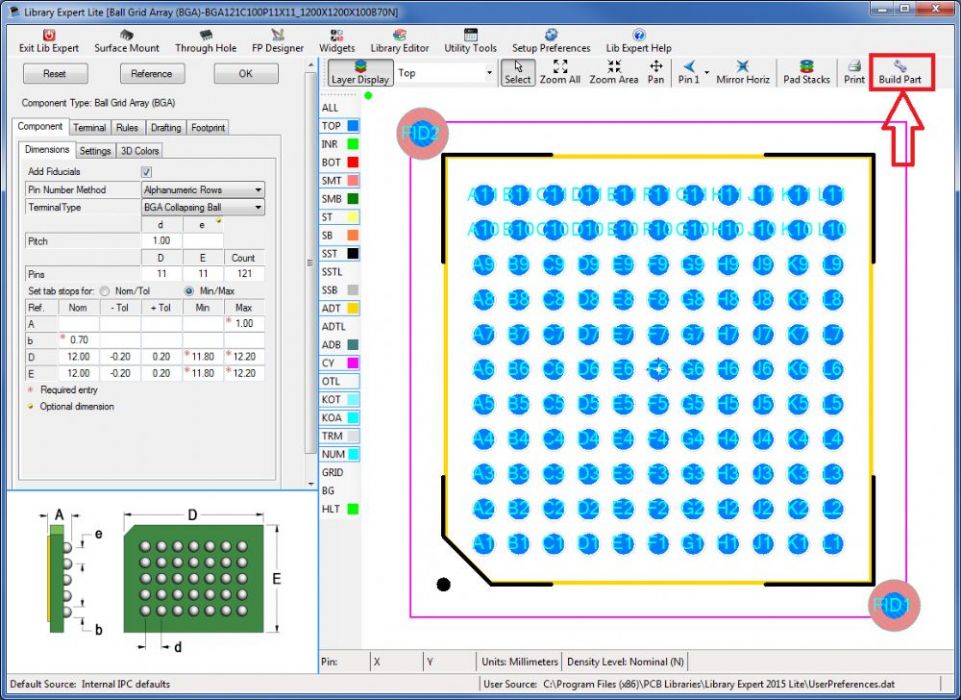

Here it is - I think you might have installed the Library Expert Viewer.


Stay connected - follow us! X - LinkedIn
Back to Top
KipUp View Drop Down
New User
New User
Avatar

Joined: 10 Jul 2012
Location: Redondo Beach
Status: Offline
Points: 9 		Post Options Post Options   Thanks (0) Thanks(0)   Quote KipUp Quote  Post ReplyReply Direct Link To This Post Posted: 13 Mar 2015 at 10:34am
I think you are right Smile

After downloading the correct tool, I have the "build" button.

Thank you Tom.
Back to Top
KipUp View Drop Down
New User
New User
Avatar

Joined: 10 Jul 2012
Location: Redondo Beach
Status: Offline
Points: 9 		Post Options Post Options   Thanks (0) Thanks(0)   Quote KipUp Quote  Post ReplyReply Direct Link To This Post Posted: 13 Mar 2015 at 11:20am
After downloading new copy of Library Expert Lite, I noticed only some of the Surface Mount and Through Hole definitions displayed the"Build Part" button. The solution to displaying the "Build Part" button consistently was to re-size the graphics window, I'm using 1 monitor, by dragging the "dividing bar" between the "dimension" window and the "graphics window" towards the "dimension window."  Now I see the Build Part" button for all SMT and THRU Hole parts.
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5718 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 13 Mar 2015 at 11:25am
You must select the OK button. The indicator light in the Viewer cannot be Red, it must be Green.
Stay connected - follow us! X - LinkedIn
Back to Top
