 Topic: What TEMPLATE to use?Posted: 28 Feb 2023 at 8:25pm |
|

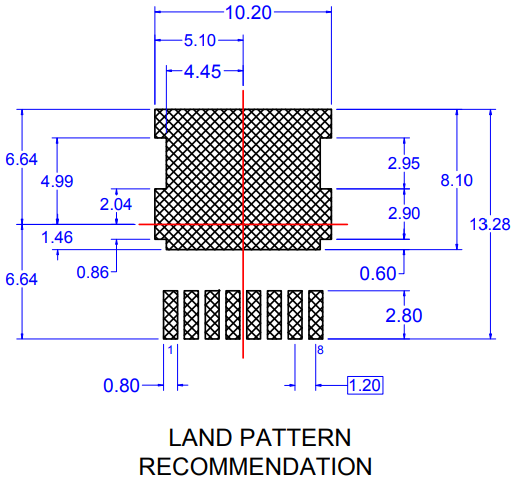

Which Template to use for these parts?
|
|
 |
|
|
|
|
Tom H
Admin Group
Joined: 05 Jan 2012 Location: San Diego, CA Status: Offline Points: 5718 |
Post Options
Thanks(0)
Quote Reply
Posted: 01 Mar 2023 at 9:05am |
|
You use FP Designer to create the base land pattern for pins 1 - 8.
Pin 9 is the thermal pad and it's created as a rectangle of the outer extents. Edit Pin 9 to add the cut-ins in your CAD tool. Or buy POD Credits and we'll build this footprint for $10 in FPX format with same day turnaround.  |
|
|
|
|
wheelee
Active User
Joined: 27 Feb 2023 Status: Offline Points: 17 |
Post Options
Thanks(0)
Quote Reply
Posted: 05 Mar 2023 at 7:09pm |
|
OK, thanks Tom, will try it in Designer.
|
|
|
|
|
