Via Fanout For BGA

 Post Reply Post Reply
Author
Message
mahmoodv99 View Drop Down
Advanced User
Advanced User


Joined: 16 Jan 2016
Status: Offline
Points: 93
Post Options Post Options   Thanks (0) Thanks(0)   Quote mahmoodv99 Quote  Post ReplyReply Direct Link To This Post Topic: Via Fanout For BGA
    Posted: 10 May 2016 at 10:38pm

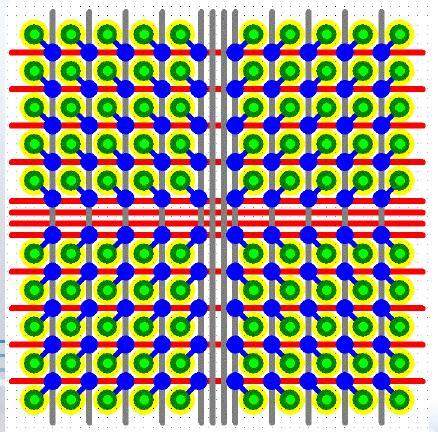

Add option to add fan out for BGA in footprint itself with options via size, trace size, etc.

Back to Top
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5718
Post Options Post Options   Thanks (1) Thanks(1)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 15 May 2016 at 9:13am
This feature is better to do in the CAD tool. Many CAD tools have automatic via fanout and if it doesn't, you need to ask the CAD vendor to add that feature into the CAD tool.

Vias in a PCB Footprint library part become Pins and the BGA pad and via connecting line become Associated Copper. This makes the library part size very big.

We tried this once and spent a lot of time creating it, but it was a disaster. It sounds like a good idea, but you should manually try to do it and put the resulting part in a PCB layout to test it. Then you will see that it's impossible to fanout BGA's in the library part.

Also, most BGA's have unused pins and if those pins have vias, it blocks routing channels and bottom side capacitor placement.


Stay connected - follow us! X - LinkedIn
