 Topic: Vertical PTH Header 8x2Posted: 21 Mar 2018 at 2:51am |
|
Hi!

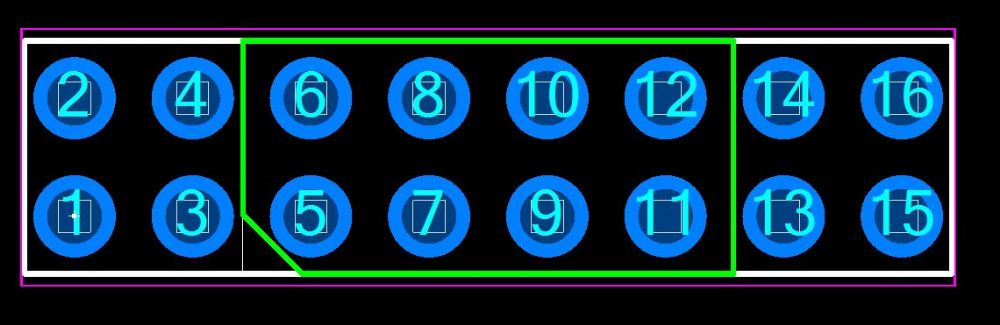

"Assembly drawing top" and "component outline" does not work for other sizes than 4x2. I am using LEEE 2018.02 Cheers /Benn  |
|
 |
|
|
|
|
Tom H
Admin Group
Joined: 05 Jan 2012 Location: San Diego, CA Status: Offline Points: 5780 |
Post Options
Thanks(0)
Quote Reply
Posted: 21 Mar 2018 at 5:45am |
|

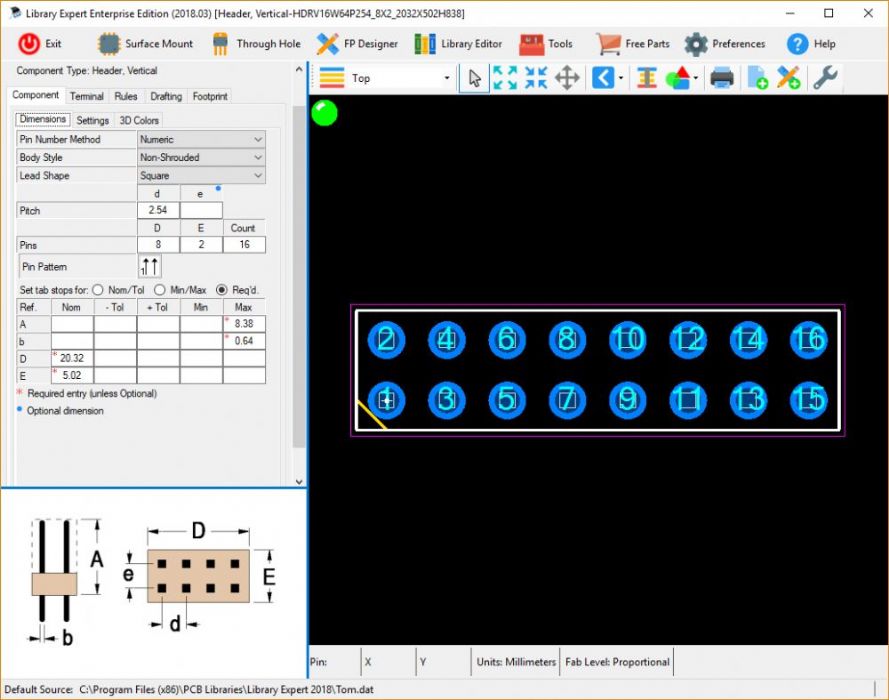

Is your "D" dimension 20.32?
We need to see your other settings. Are you available to do a webcast so we can see what you are doing?  |
|
|
|
|
BennsPCB
Advanced User
Joined: 30 Jan 2013 Location: Sweden Status: Offline Points: 98 |
Post Options
Thanks(0)
Quote Reply
Posted: 21 Mar 2018 at 7:33am |
|
Hi Tom. Problem solved!
You are right. It was a typo in D-dimension that was the problem. Still, I'd like to get a warning if such an obvious error occurs. Cheers, /Benn |
|
|
|
|
Tom H
Admin Group
Joined: 05 Jan 2012 Location: San Diego, CA Status: Offline Points: 5780 |
Post Options
Thanks(0)
Quote Reply
Posted: 21 Mar 2018 at 7:35am |
|
You do get a warning...
The footprint looks screwed up. That's your warning.  |
|
|
|
|
