UTQFN With Two GND Pads

Message Topic Search Topic Options Post Reply Create New Topic Printable Version Translate Topic

   Does anyone have any tips for creating a UTQFN package linear tech LTC5588-1?

It has a large GND pad and a small thin GND pad for RF GND and digital ground.
It says variation PF24MA

Thanks
Rob

Author	Message Topic Search Topic Options Post Reply Create New Topic Printable Version Translate Topic
ISSL2013 Members Profile Send Private Message Find Members Posts Add to Buddy List New User Joined: 13 Sep 2013 Location: United Kingdom Status: Offline Points: 4	Post Options Post Reply Quote ISSL2013 Report Post Thanks(0) Quote Reply Topic: UTQFN With Two GND Pads Posted: 11 Feb 2014 at 12:20pm
	Does anyone have any tips for creating a UTQFN package linear tech LTC5588-1? It has a large GND pad and a small thin GND pad for RF GND and digital ground. It says variation PF24MA Thanks Rob



Tom H Members Profile Send Private Message Find Members Posts Add to Buddy List Admin Group Joined: 05 Jan 2012 Location: San Diego, CA Status: Offline Points: 5718	Post Options Post Reply Quote Tom H Report Post Thanks(0) Quote Reply Posted: 11 Feb 2014 at 12:58pm

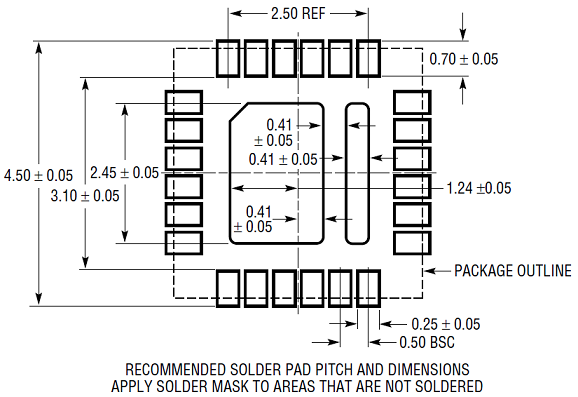

	You can easily build this Linear Technology recommended footprint using the FP Designer. Also, this part will be available for download on Parts on Demand (POD) www.pcblibraries.com/POD when it goes on-line this week.
