PCB Design Optimization Starts in the CAD Library
 Post Reply Post Reply Page  123>
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
Nick B View Drop Down
Admin Group
Admin Group


Joined: 02 Jan 2012
Status: Offline
Points: 1908 		Post Options Post Options   Thanks (28) Thanks(28)   Quote Nick B Quote  Post ReplyReply Direct Link To This Post Topic: PCB Design Optimization Starts in the CAD Library
    Posted: 20 Jul 2012 at 9:32am
PCB Design Optimization (updated September 5, 2013)
This 149-page Presentation is absolutely FREE!

Just make sure you are logged in to the forum and click this link:
  PCB Design Optimization Presentation

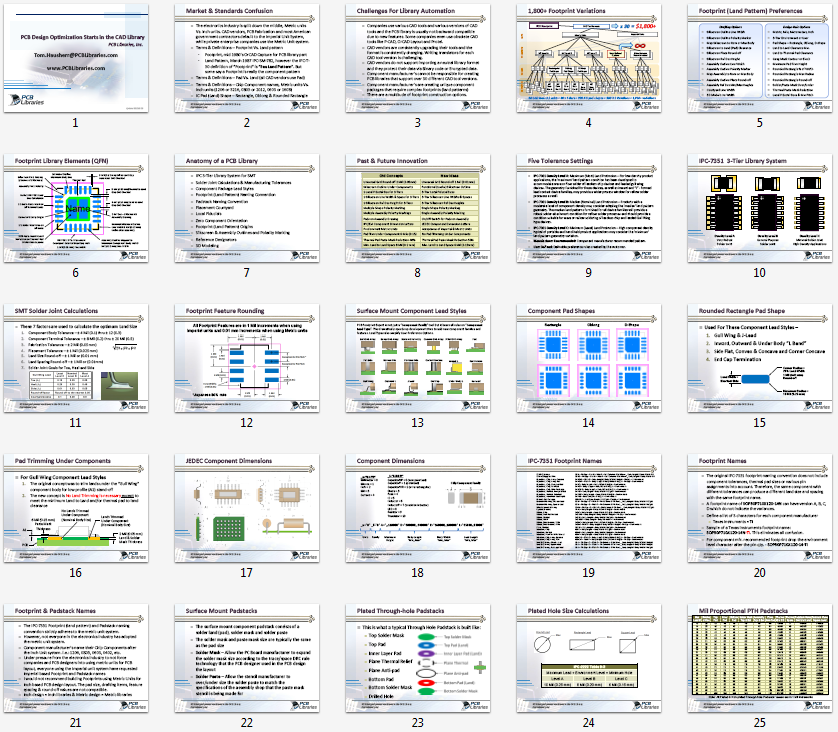

(first 25 slides of the 146-slide presentation are shown below)


The following document represents every Surface Mount component family in the PCB Library Expert with graphic illustrations of every 3D STEP model, example Footprint with Silkscreen and updated Solder Joint Goal Tables:
