Square NO_PROBE For Round Radial Parts |
Post Reply
|
Page <12 |
| Author | |
mahmoodv99
Advanced User
Joined: 16 Jan 2016 Status: Offline Points: 93 |
 Post Options
 Thanks(0)
 Quote Reply
 Posted: 09 May 2016 at 9:41pm |
|

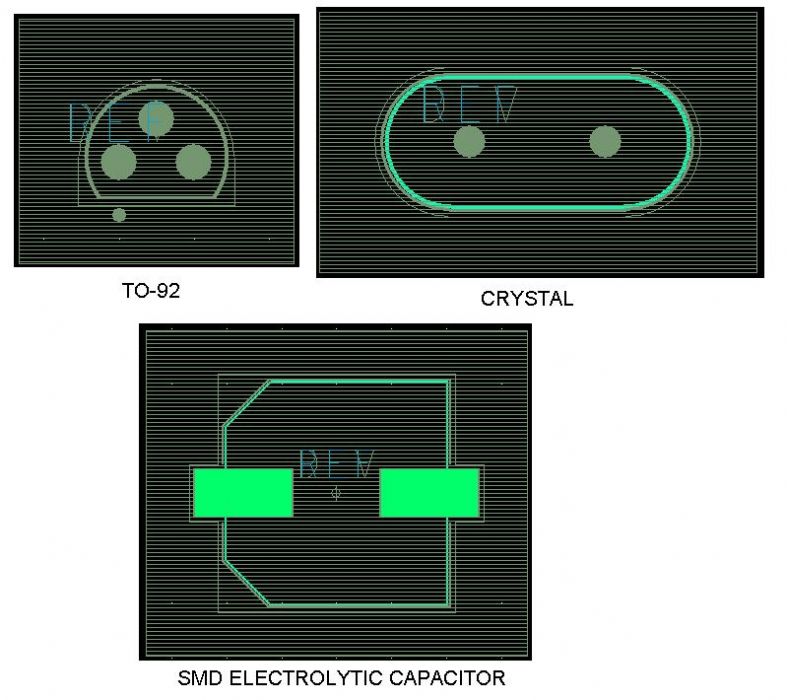

Dear Tom, Courtyard excess created in any shape. But why No probe can't create so ? Is any IPC rules for creation NO_PROBE ?For Radial LED couryard is OK, but for other components like TO-92, crystal, SMD Electrolyic Capacitor NO_PROBE created as rectangle shape when selecting option both Component body and Cortyard.
 |
|
 |
|
|
|
|
Tom H
Admin Group
Joined: 05 Jan 2012 Location: San Diego, CA Status: Offline Points: 5717 |
Post Options
Thanks(1)
Quote Reply
Posted: 10 May 2016 at 8:27am |
|
There is no IPC standard for Allegro / OrCAD PCB NO_PROBE test point keep-outs. |
|
|
|
|
chrisa_pcb
Moderator Group
Joined: 29 Jul 2012 Location: San Diego Status: Offline Points: 772 |
Post Options
Thanks(0)
Quote Reply
Posted: 10 May 2016 at 9:45am |
|
How critical is such a feature? That the no probe be able to expand a polygon courtyard without using a rectangle? |
|
|
|
|
mahmoodv99
Advanced User
Joined: 16 Jan 2016 Status: Offline Points: 93 |
Post Options
Thanks(0)
Quote Reply
Posted: 10 May 2016 at 8:39pm |
|
Dear Chrisa,
I know that, but if it will create automatically that's good. I am expecting a 100% completed output form FPX.
|
|
|
|
|
