 Topic: SOIC Step modelPosted: 04 Jan 2017 at 4:45am |
|
How can I configure a Pin 1 dot instead of a Pin 1 chamfer for the 3D Step export?

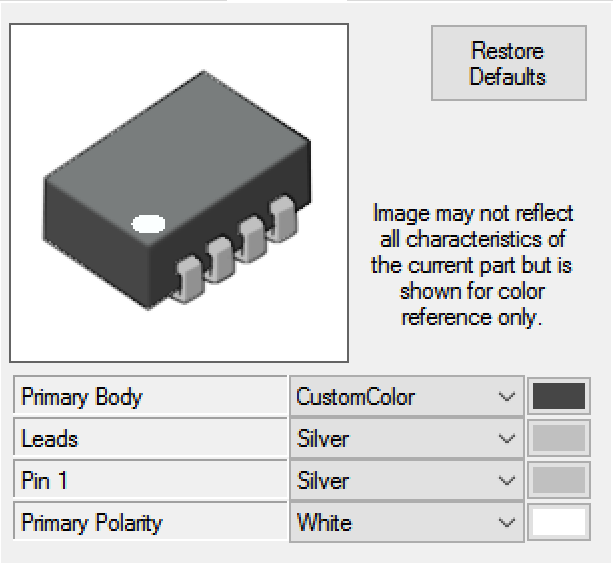

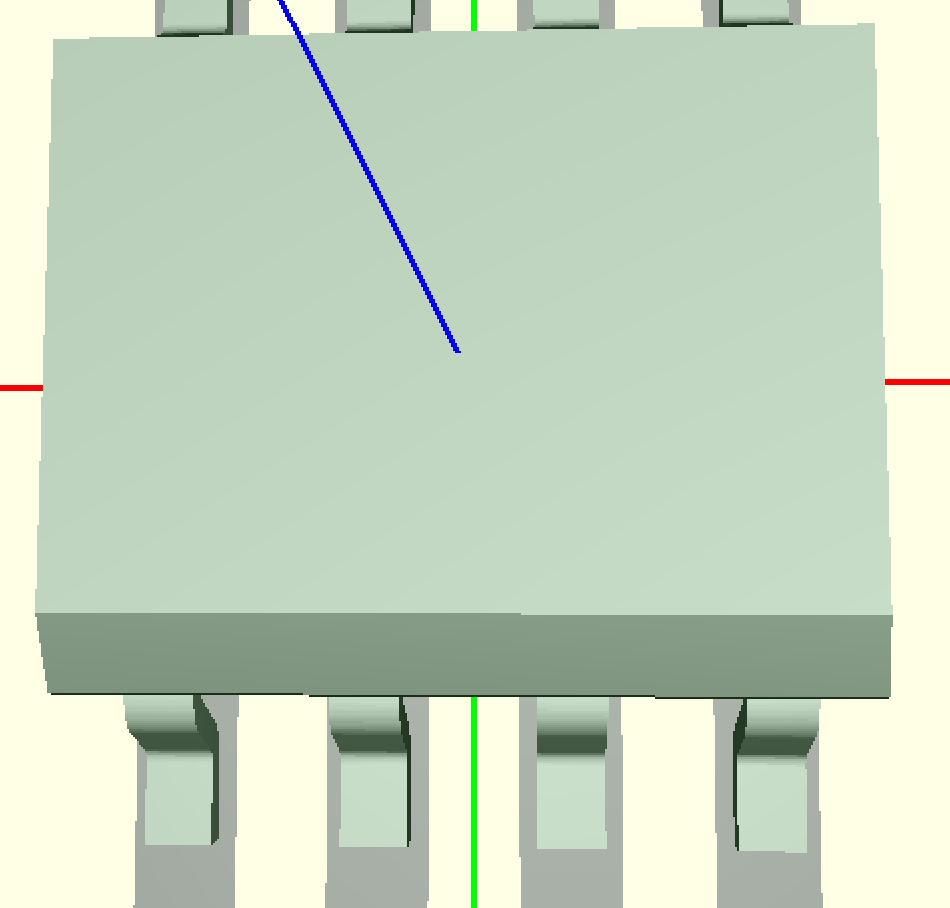

Sample pictures and sample library attached. Picture of pin 1 as expected: Picture of pin 1 as exported with chamfer:
|
|
 |
|
|
|
|
Tom H
Admin Group
Joined: 05 Jan 2012 Location: San Diego, CA Status: Offline Points: 5718 |
Post Options
Thanks(0)
Quote Reply
Posted: 04 Jan 2017 at 3:00pm |
|
SOIC's with a 0.05" (1.27 mm) pin pitch do not have a Pin 1 dot on the physical package. Only metric pin pitch parts have a Pin 1 Dot. You can color the Pin 1 3D Model Lead to a different color, but you cannot change 3D Model images in Library Expert. |
|
|
|
|
Guenter P
Advanced User
Joined: 11 Jun 2014 Status: Offline Points: 104 |
Post Options
Thanks(0)
Quote Reply
Posted: 04 Jan 2017 at 6:39pm |
|
I have some parts with a pitch >= 1.27mm with a pin 1 dot. For these parts I can easily change the exported 3D step model before I integrate it into the layout library. Thanks for Your quick answer. |
|
|
|
|
