SOIC Step model

 Post Reply Post Reply
Author
Message
Guenter P View Drop Down
Advanced User
Advanced User


Joined: 11 Jun 2014
Status: Offline
Points: 104
Post Options Post Options   Thanks (0) Thanks(0)   Quote Guenter P Quote  Post ReplyReply Direct Link To This Post Topic: SOIC Step model
    Posted: 04 Jan 2017 at 4:45am
How can I configure a Pin 1 dot instead of a Pin 1 chamfer for the 3D Step export?
Sample pictures and sample library attached.

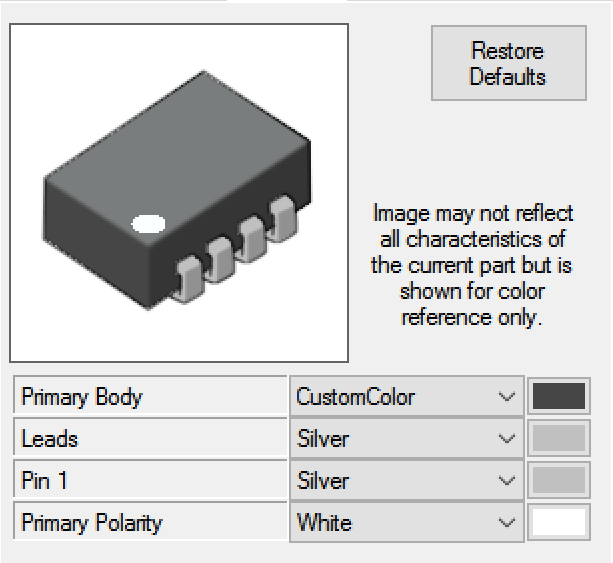

Picture of pin 1 as expected:

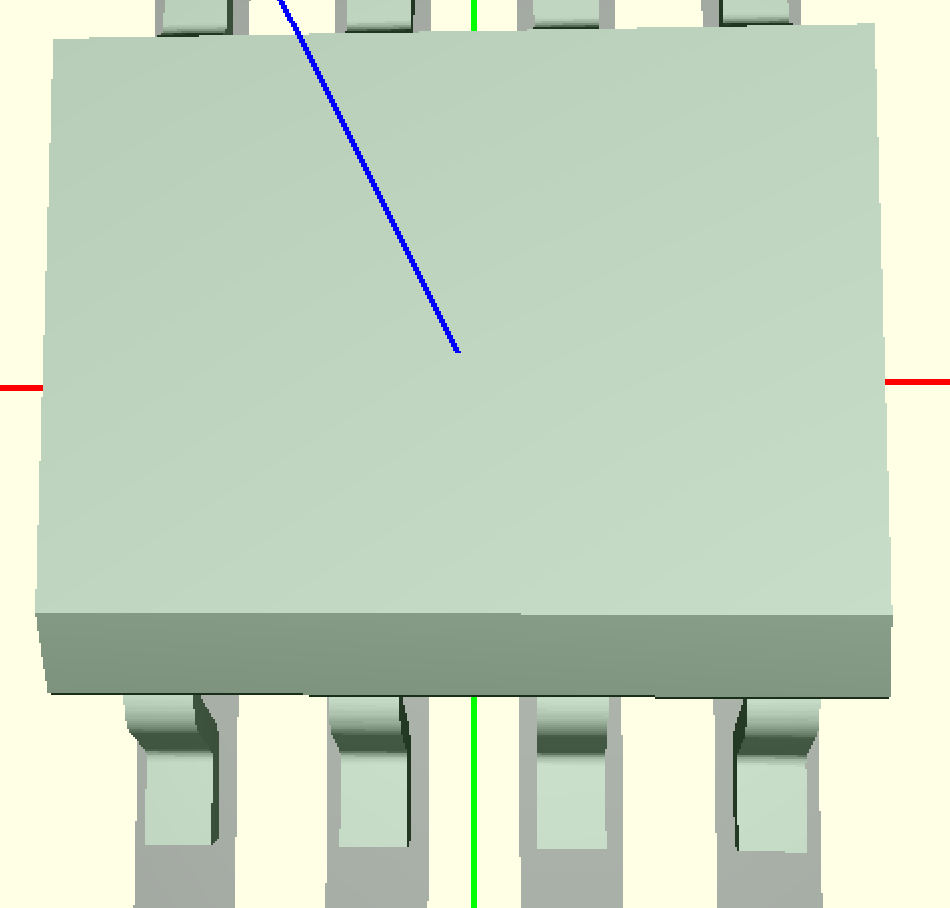

Picture of pin 1 as exported with chamfer:
Back to Top
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5716
Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 04 Jan 2017 at 3:00pm
SOIC's with a 0.05" (1.27 mm) pin pitch do not have a Pin 1 dot on the physical package.

Only metric pin pitch parts have a Pin 1 Dot.

You can color the Pin 1 3D Model Lead to a different color, but you cannot change 3D Model images in Library Expert.

Stay connected - follow us! X - LinkedIn
Back to Top
Guenter P View Drop Down
Advanced User
Advanced User


Joined: 11 Jun 2014
Status: Offline
Points: 104
Post Options Post Options   Thanks (0) Thanks(0)   Quote Guenter P Quote  Post ReplyReply Direct Link To This Post Posted: 04 Jan 2017 at 6:39pm
I have some parts with a pitch >= 1.27mm with a pin 1 dot.
For these parts I can easily change the exported 3D step model before I integrate it into the layout library.
Thanks for Your quick answer.
