Silkscreen Polarity Unclear Molded Body

Message Topic Search Topic Options Post Reply Create New Topic Printable Version Translate Topic

I tried a Molded Body Capacitor, AVX TAJ series, EIAJ 3216, EIA 1206 size (case A) as here:
http://www.avx.com/docs/Catalogs/taj.pdf

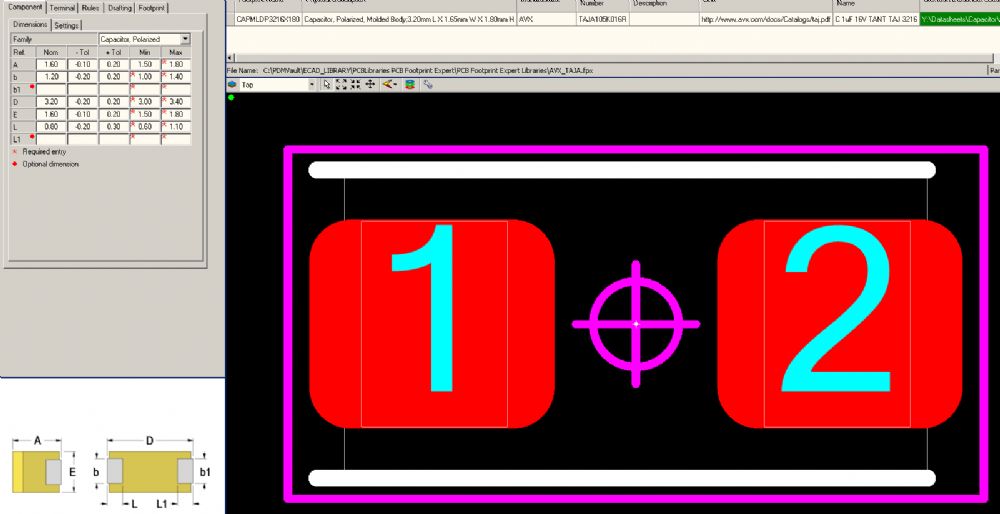

When the LEAST environment is selected the silkscreen shown won't show the component polarity very clearly.

MOST environment is okay,  Nominal, I'm not sure: may be clear enough, but the LEAST won't show much difference when printed on a PCB.

Author	Message Topic Search Topic Options Post Reply Create New Topic Printable Version Translate Topic
jameshead Members Profile Send Private Message Find Members Posts Add to Buddy List Expert User Joined: 20 Mar 2012 Location: Oxfordshire, UK Status: Offline Points: 576	Post Options Post Reply Quote jameshead Report Post Thanks(0) Quote Reply Topic: Silkscreen Polarity Unclear Molded Body Posted: 29 May 2012 at 3:54am
	I tried a Molded Body Capacitor, AVX TAJ series, EIAJ 3216, EIA 1206 size (case A) as here: http://www.avx.com/docs/Catalogs/taj.pdf When the LEAST environment is selected the silkscreen shown won't show the component polarity very clearly. MOST environment is okay, Nominal, I'm not sure: may be clear enough, but the LEAST won't show much difference when printed on a PCB.



Tom H Members Profile Send Private Message Find Members Posts Add to Buddy List Admin Group Joined: 05 Jan 2012 Location: San Diego, CA Status: Offline Points: 5719	Post Options Post Reply Quote Tom H Report Post Thanks(0) Quote Reply Posted: 23 Jul 2016 at 8:33am
	We added these new Polarity Marking to allow the user to place them where you want and control the Size and Rotation. We also added Keep-outs for both the Calculator and FP Designer. These new items are saved in the FPX file.
