Silkscreen Pin 1 Indication Options

 Post Reply Post Reply
Author
Message
 Rating: Topic Rating: 1 Votes, Average 5.00  Topic Search Topic Search  Topic Options Topic Options
FredBoyer View Drop Down
New User
New User


Joined: 23 Oct 2013
Status: Offline
Points: 19
Post Options Post Options   Thanks (2) Thanks(2)   Quote FredBoyer Quote  Post ReplyReply Direct Link To This Post Topic: Silkscreen Pin 1 Indication Options
    Posted: 24 Oct 2013 at 2:03pm
It would be nice to be able to choose the kind of indication we would like to have for the pin 1.
It can be a dot, a chamfer, a dot and a chamfer... etc.

Regards
Fred
Back to Top
Back to Top
mytime View Drop Down
Active User
Active User


Joined: 06 Dec 2012
Location: Florida
Status: Offline
Points: 19
Post Options Post Options   Thanks (1) Thanks(1)   Quote mytime Quote  Post ReplyReply Direct Link To This Post Posted: 04 Nov 2013 at 1:12pm
My customers want a dot also I would prefer something that looks like a dot but is actually text as Altium allows you to move text freely, but a dot requires the component to be unlocked to move it.

Thank you
Fran
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5716
Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 26 Mar 2014 at 7:10am
We added your request for a Polarity Dot by Pin 1 in the upcoming V2014 release.

The dot size user definable and has Help Menu documentation.

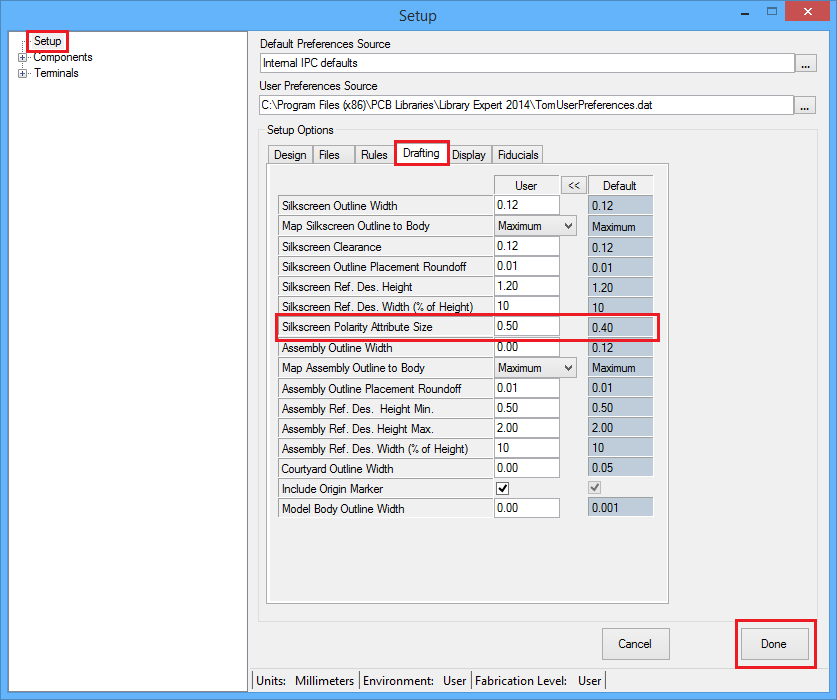

User Preferences setting the dot size -

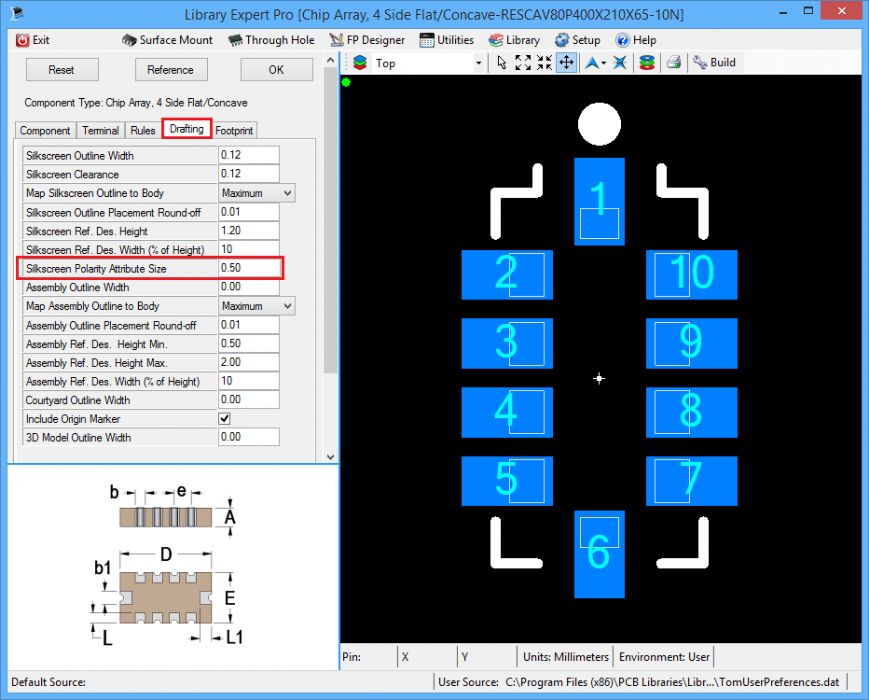

Calculator Drafting Tab to customize the size on-the-fly (for "Lite" users) -

Stay connected - follow us! X - LinkedIn
Back to Top
JZsori View Drop Down
Advanced User
Advanced User


Joined: 01 Mar 2012
Status: Offline
Points: 65
Post Options Post Options   Thanks (0) Thanks(0)   Quote JZsori Quote  Post ReplyReply Direct Link To This Post Posted: 26 Mar 2014 at 7:14am
Will this be a true attribute in that it will be movable?
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5716
Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 26 Mar 2014 at 7:20am

For PADS Layout this is a Text Attribute and the dot can be relocated or deleted in the PCB layout.

For other CAD tools that don't support Text Attributes it will be a Drafting Line item.

Yea, it's finally here!


Stay connected - follow us! X - LinkedIn
Back to Top
JZsori View Drop Down
Advanced User
Advanced User


Joined: 01 Mar 2012
Status: Offline
Points: 65
Post Options Post Options   Thanks (0) Thanks(0)   Quote JZsori Quote  Post ReplyReply Direct Link To This Post Posted: 26 Mar 2014 at 7:24am

Excellent news!  Thanks.

Now, by "text attribute" do you also mean that the dot can be changed to a "1", for example?

Back to Top
Jeff.M View Drop Down
Admin Group
Admin Group


Joined: 16 May 2012
Location: San Diego
Status: Offline
Points: 477
Post Options Post Options   Thanks (0) Thanks(0)   Quote Jeff.M Quote  Post ReplyReply Direct Link To This Post Posted: 26 Mar 2014 at 8:24am
I suppose it could but the text size is optimized for the 'dot' character - 0.9 mm height, 0.45 mm line width.  If you want to use a "1" you'd be better off creating your own attribute.
Stay connected - follow us! Twitter - LinkedIn
Back to Top
JZsori View Drop Down
Advanced User
Advanced User


Joined: 01 Mar 2012
Status: Offline
Points: 65
Post Options Post Options   Thanks (0) Thanks(0)   Quote JZsori Quote  Post ReplyReply Direct Link To This Post Posted: 26 Mar 2014 at 9:35am
Thanks Jeff - that's encouraging that it is done with text rather than copper.  I'll have to play with it but it sounds like it should be doable.  Some clients are ok with dot but others want numeric.  And, depending on the design I could make the "1" larger or smaller based on space available.
Back to Top
