Silkscreen Meaning?

Message Topic Search Topic Options Post Reply Create New Topic Printable Version Translate Topic

   I know it is some where, but could someone point out where I could find the information on the meanings of the silkscreen patterns produced by "PCB Libraries". I think it was following a standard.

I am attempting to understand the polarity of the capacitor standard.

I used from the library of "PCB Libraries", "CAPMP6032X280 Capacitor, Polarized, Molded Body;6.00 mm L X 3.20 mm W X 2.80 mm H body" for SMD Parts.

However, looking at the part I created I am not sure which is positive or Neg.

Is the slanted part on the left side showing Neg. or Pos?

Thank You

Author	Message Topic Search Topic Options Post Reply Create New Topic Printable Version Translate Topic
Hawk44 Members Profile Send Private Message Find Members Posts Add to Buddy List Active User Joined: 06 Sep 2013 Location: Kentucky Status: Offline Points: 42	Post Options Post Reply Quote Hawk44 Report Post Thanks(0) Quote Reply Topic: Silkscreen Meaning? Posted: 25 Oct 2013 at 3:57pm
	I know it is some where, but could someone point out where I could find the information on the meanings of the silkscreen patterns produced by "PCB Libraries". I think it was following a standard. I am attempting to understand the polarity of the capacitor standard. I used from the library of "PCB Libraries", "CAPMP6032X280 Capacitor, Polarized, Molded Body;6.00 mm L X 3.20 mm W X 2.80 mm H body" for SMD Parts. However, looking at the part I created I am not sure which is positive or Neg. Is the slanted part on the left side showing Neg. or Pos? Thank You



Tom H Members Profile Send Private Message Find Members Posts Add to Buddy List Admin Group Joined: 05 Jan 2012 Location: San Diego, CA Status: Offline Points: 5718	Post Options Post Reply Quote Tom H Report Post Thanks(0) Quote Reply Posted: 02 May 2018 at 9:01am

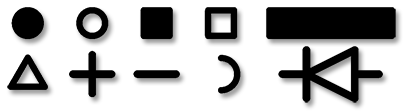

	The Molded Body Polarized Capacitor has the Positive end on Pin 1. Use the "Drafting Outline" feature to add your personal polarity marking. These are your options: You can pick the shape, size, location, rotation and filled or unfilled polygons. You also pick the layer: Legend Top/Bottom or Assembly Top/Bottom
