lalexman
Expert User
Joined: 30 Jul 2012 Status: Offline Points: 679 |
 Post Options
 Thanks(0)
 Quote Reply
 Topic: Silkscreen and Assembly Pin 1 Polarity IndicatorsPosted: 30 Oct 2015 at 11:05am |
|
V2015.18
Using the FP designer to create a 14 pin smt header. Changing the silkscreen pin 1 dot size or auto-generate Pin 1 indicator line, does not do anything on the screen. The silkscreen line width is 0.127. |
|
 |
|
|
|
|
Tom H
Admin Group
Joined: 05 Jan 2012 Location: San Diego, CA Status: Offline Points: 5718 |
Post Options
Thanks(0)
Quote Reply
Posted: 30 Oct 2015 at 11:27am |
|
Due to the recent changes in IPC-7351C, V2015.18 has a new feature.

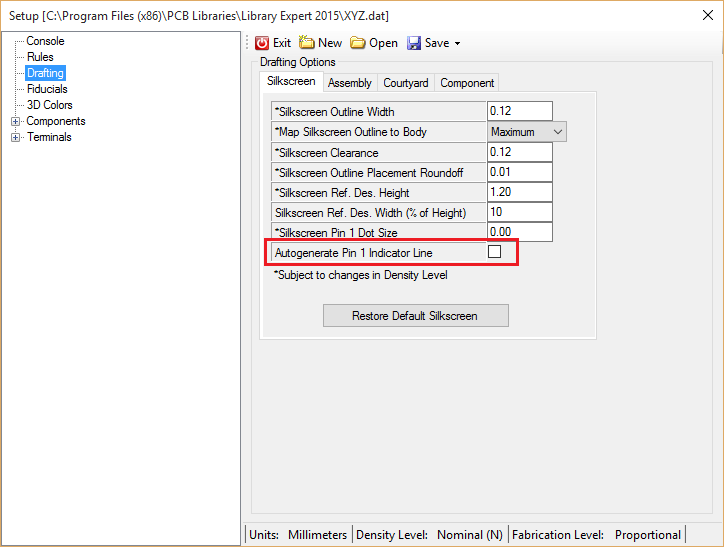

Open Preferences > Drafting > Silkscreen > Auto-generate Pin 1 Line > turn on/off  |
|
|
|
|
lalexman
Expert User
Joined: 30 Jul 2012 Status: Offline Points: 679 |
Post Options
Thanks(0)
Quote Reply
Posted: 30 Oct 2015 at 11:32am |
|
I have that enabled. And also in the fp designer section of the part I am creating.
|
|
|
|
|
Tom H
Admin Group
Joined: 05 Jan 2012 Location: San Diego, CA Status: Offline Points: 5718 |
Post Options
Thanks(0)
Quote Reply
Posted: 30 Oct 2015 at 11:40am |
|
Please download the latest release of V2015.18 uploaded yesterday 10/29/15 There is a brand new feature to allow the user to define unlimited Polarity Markers using the "Draw" icon in the Toolbar. V2015.18 New Features:
|
|
|
|
|
