Silk Legend For "Micro-miniature" Chip Components

 Post Reply Post Reply
Author
Message
mahmoodv99 View Drop Down
Advanced User
Advanced User


Joined: 16 Jan 2016
Status: Offline
Points: 93
Post Options Post Options   Thanks (1) Thanks(1)   Quote mahmoodv99 Quote  Post ReplyReply Direct Link To This Post Topic: Silk Legend For "Micro-miniature" Chip Components
    Posted: 29 Feb 2016 at 8:49pm
Hi,
Is ther any option to shift silk screen to neear assembly for chip coponents.
I want silk screen as shown in LP Calculator..
Back to Top
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5719
Post Options Post Options   Thanks (2) Thanks(2)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 29 Feb 2016 at 9:42pm
IPC recommends that Legend outlines should not be placed under a component, especially a chip component.

Also, you can only do what you recommend on a 1206 or larger.

You can't fit legend inside the pins of 0201 or 0402 or 0603.
Stay connected - follow us! X - LinkedIn
Back to Top
robmeyer View Drop Down
Advanced User
Advanced User


Joined: 04 Oct 2012
Status: Offline
Points: 113
Post Options Post Options   Thanks (0) Thanks(0)   Quote robmeyer Quote  Post ReplyReply Direct Link To This Post Posted: 13 Nov 2016 at 11:53pm
Hi,

is there a way to get the "old" Library expert style for the Legend of chip components back?

Now it is only possible to get this LP Calculator style like in the picture above.

Thanks
Robert
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5719
Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 14 Nov 2016 at 6:26am
We have received a high volume of requests to remove Legend Markings for micro-miniature.

You have 100% control of the Legend (Top & Bottom) and Assembly Drawing (Top & Bottom) in the "Drafting Symbols" tool bar menu.

Watch this video for some tips -

These are the marking shapes that are available for you to insert into the footprint. You select the Shape, Size, Line Width, Layer and Location. You can also fill or not fill closed polygons.

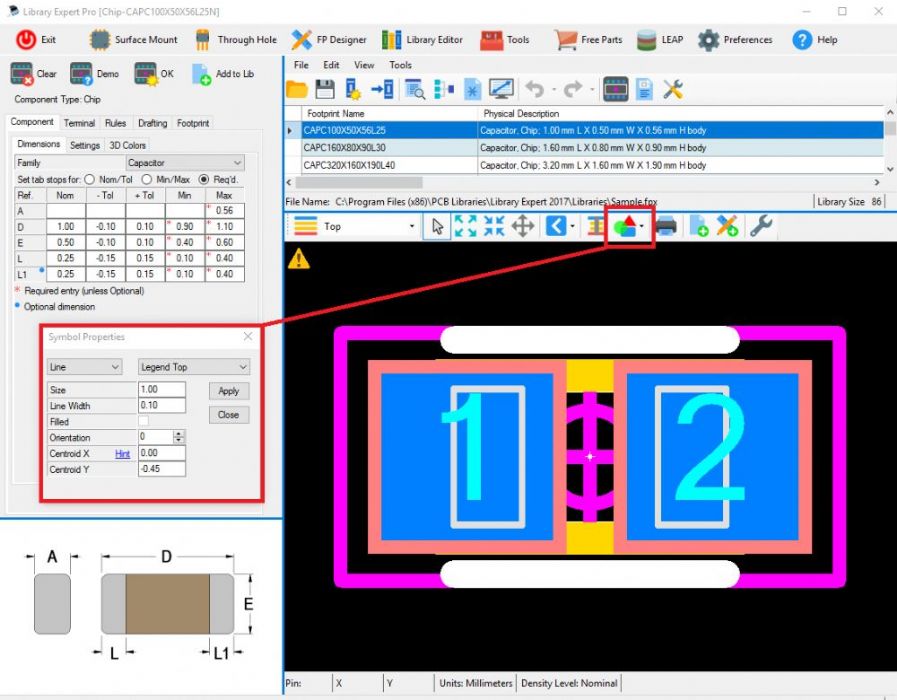

Here is an 0402 Chip Capacitor with Legend Lines that I quickly inserted a line shape, line length, line width, line location, rotation, layer that I wanted -


I could have selected a rectangle to completely encompass the entire part perimeter. But I choose lines that I could make any length I want.

These lines are saved in the FPX file and you can edit them any time you want by simply selecting "Right Mouse Button > Shapes" and then double click on the Legend shape to modify it.

We try to make Library Expert compatible for all users.
