Pin1 in the 3D step model is at the wrong place |
Post Reply
|
| Author | |
ThomasHM
New User
Joined: 29 Jan 2014 Status: Offline Points: 9 |
 Post Options
 Thanks(0)
 Quote Reply
 Topic: Pin1 in the 3D step model is at the wrong placePosted: 21 Sep 2022 at 4:54am |
|

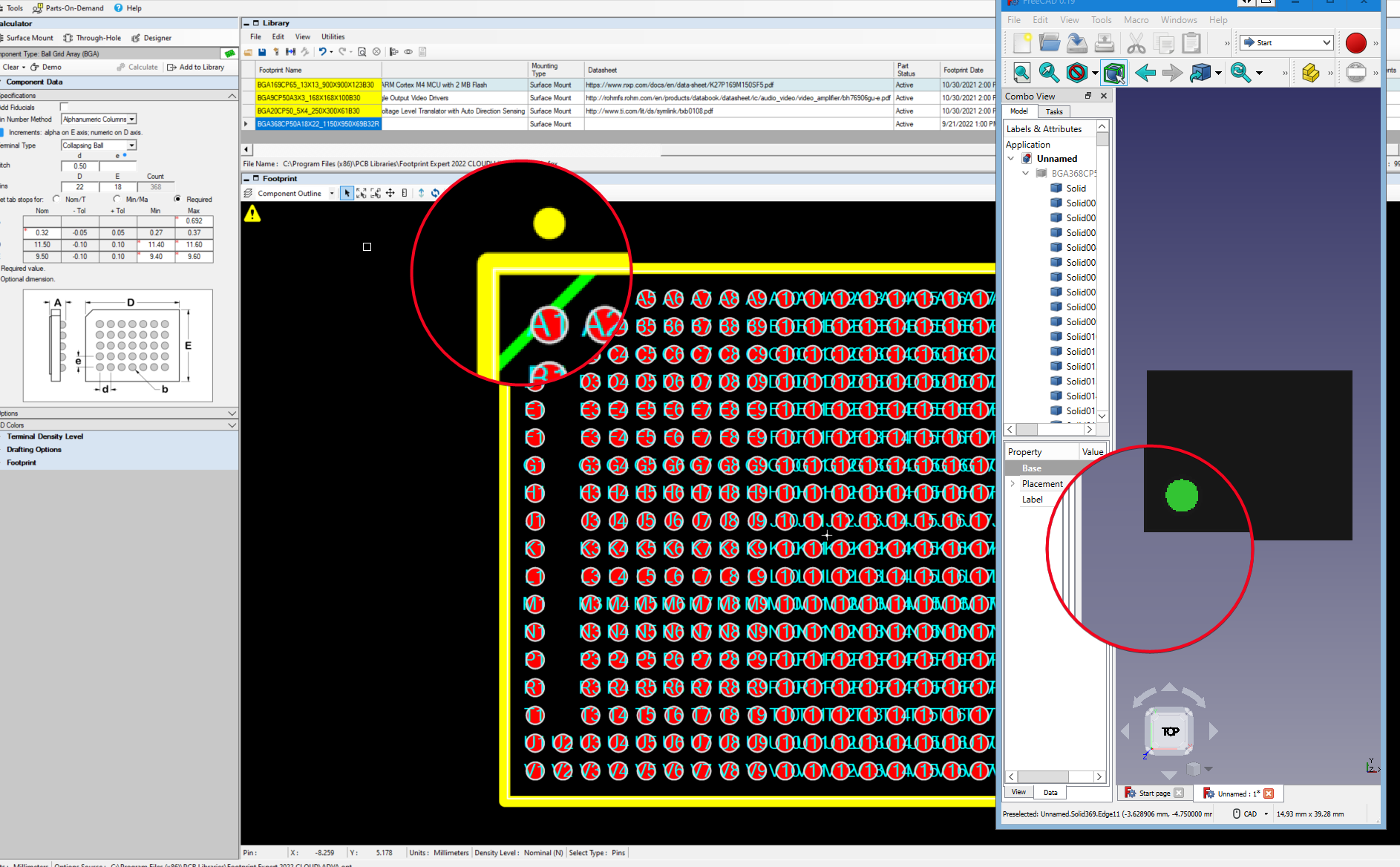

I have created a BGA with Footprint Expert Cloud 2022.11 and exported the padstack cell and 3D model unfortunately the Pin1 dot is at the wrong side at the 3D model
Best Regards Thomas
|
|
 |
|
|
|
|
Tom H
Admin Group
Joined: 05 Jan 2012 Location: San Diego, CA Status: Offline Points: 5718 |
Post Options
Thanks(0)
Quote Reply
Posted: 21 Sep 2022 at 8:38am |
|
There is an "R" at the end of the BGA Footprint Name.
This means the Footprint is "Mirrored". Un-mirror the Footprint. |
|
|
|
|
ThomasHM
New User
Joined: 29 Jan 2014 Status: Offline Points: 9 |
Post Options
Thanks(0)
Quote Reply
Posted: 22 Sep 2022 at 5:28am |
|
I mirrored the footprint intentionally to have Pin A1 at the upper left corner.
How else can I create that FPGA?
|
|
|
|
|
Tom H
Admin Group
Joined: 05 Jan 2012 Location: San Diego, CA Status: Offline Points: 5718 |
Post Options
Thanks(0)
Quote Reply
Posted: 22 Sep 2022 at 8:47am |
|
When you Mirror a BGA (or any package) you're looking at the Bottom Side.
Our server is down right now so I can't upload pictures or files. Here is what your BGA should look like - Pitch = 0.50 Pins D = 18, E = 22 A = 0.692 b = 0.32 D = 9.50 +/- 0.10 E = 11.5 +/- 0.10 |
|
|
|
|
