Pin 1 Dot on Pads

Message Topic Search Topic Options Post Reply Create New Topic Printable Version Translate Topic

   It seems there are Pin 1 dot issues on 2 pin polarized
parts.  The pin 1 dot is on the pad.  I’ve noticed it with the following families:

 CHIP – Polarized

MELF

Molded Body

SODFL

 Is there a preference setting causing this?  I don’t see any control over the position in
the preferences besides Legend Outline Placement Roundoff.  But I don’t want to change that value as it
changes all the Silk lines as well as the pin 1 dot.  It is currently set to 0.01 which is the
default I believe.

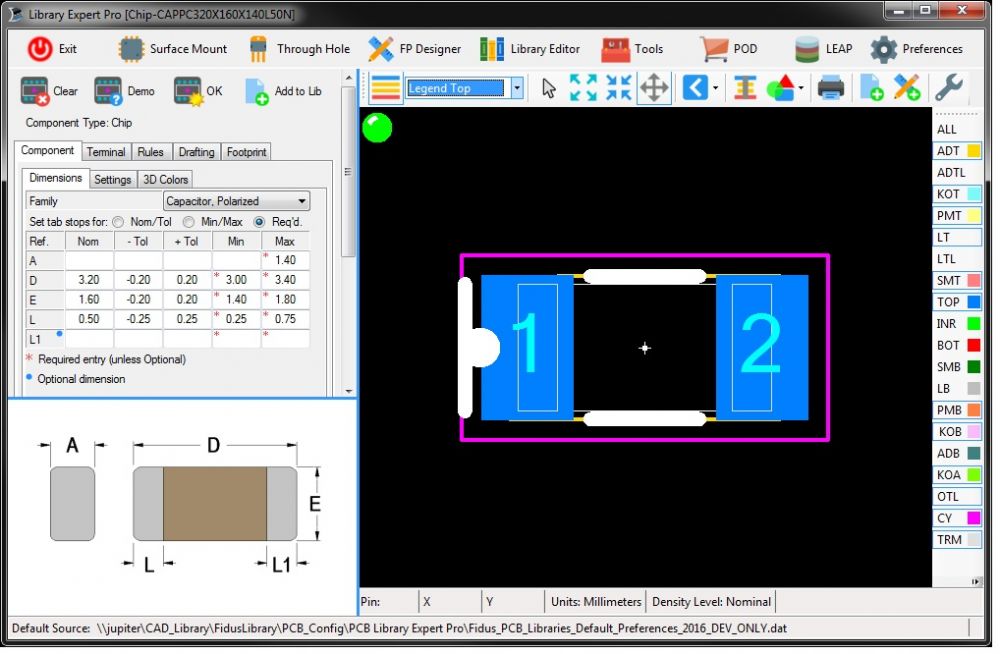

This problem is present in version 2016.10 and 2016.11  Can this be corrected with a setting change or is it a bug?  See image below of a demo polarized chip cap.
Regards,
Chris

Author	Message Topic Search Topic Options Post Reply Create New Topic Printable Version Translate Topic
GrungyRemnant Members Profile Send Private Message Find Members Posts Add to Buddy List Advanced User Joined: 17 Oct 2013 Status: Offline Points: 91	Post Options Post Reply Quote GrungyRemnant Report Post Thanks(0) Quote Reply Topic: Pin 1 Dot on Pads Posted: 22 Sep 2016 at 7:08am
	It seems there are Pin 1 dot issues on 2 pin polarized parts. The pin 1 dot is on the pad. I’ve noticed it with the following families: CHIP – Polarized MELF Molded Body SODFL Is there a preference setting causing this? I don’t see any control over the position in the preferences besides Legend Outline Placement Roundoff. But I don’t want to change that value as it changes all the Silk lines as well as the pin 1 dot. It is currently set to 0.01 which is the default I believe. This problem is present in version 2016.10 and 2016.11 Can this be corrected with a setting change or is it a bug? See image below of a demo polarized chip cap. Regards, Chris



Tom H Members Profile Send Private Message Find Members Posts Add to Buddy List Admin Group Joined: 05 Jan 2012 Location: San Diego, CA Status: Online Points: 5718	Post Options Post Reply Quote Tom H Report Post Thanks(0) Quote Reply Posted: 23 Sep 2016 at 8:30am
	This issue has been fixed in the latest V2016.11 pre-release - www.pcblibraries.com/downloads Let us know if you have any further issues and thank you for reporting this issue.
