 Topic: Pad Stack ManagerPosted: 03 Nov 2016 at 4:09am |
|

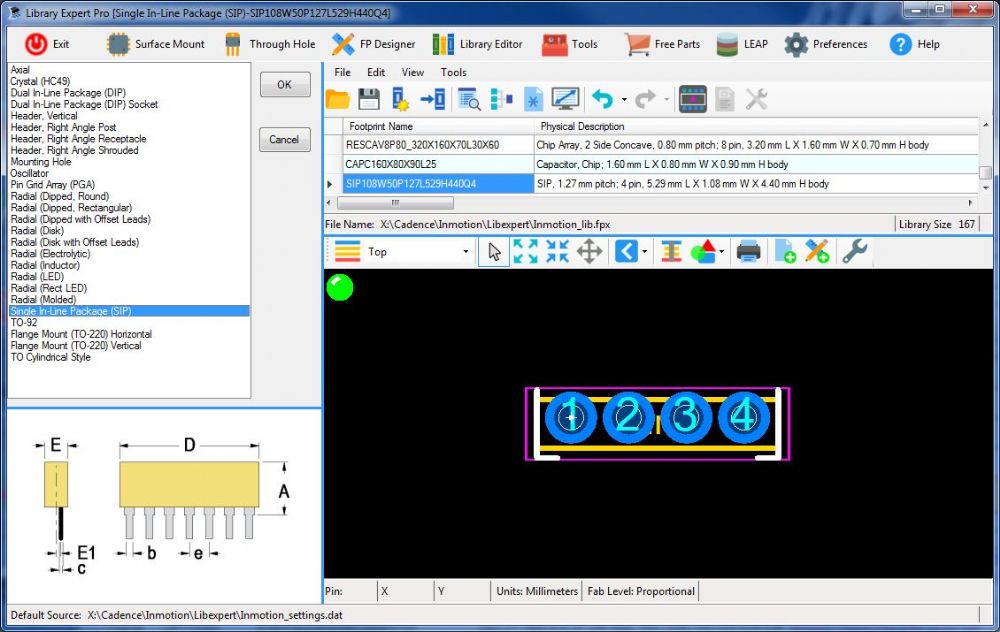

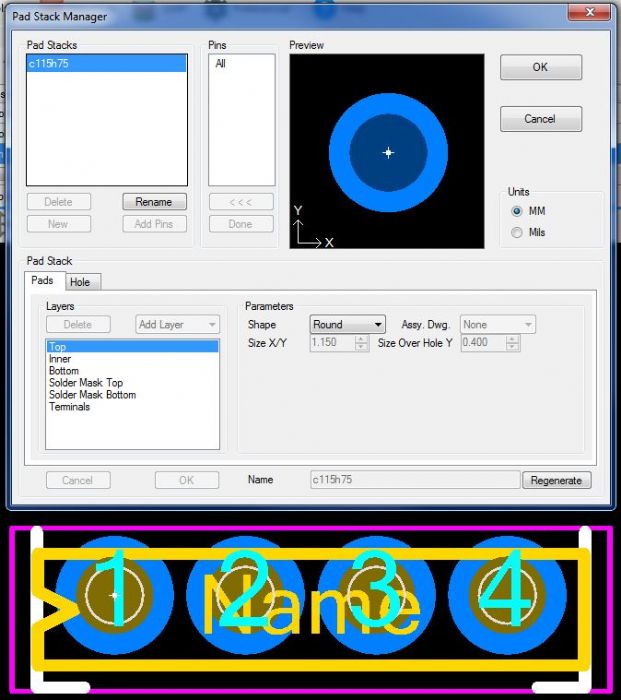

I'm creating a 4-pin SIP Hall sensor (Allegro A1363) FP and want to increase pad clearance by using an oblong pad instead of a round one, but Pad Stack Manager won't let me do that.
Why? Cheers, ...  |
|
 |
|
|
|
|
Tom H
Admin Group
Joined: 05 Jan 2012 Location: San Diego, CA Status: Offline Points: 5718 |
Post Options
Thanks(0)
Quote Reply
Posted: 03 Nov 2016 at 7:04am |
|
You Must create this part in FP Designer. The Calculator does not have a Oblong Through-hole pad stack option. |
|
|
|
|
BennsPCB
Advanced User
Joined: 30 Jan 2013 Location: Sweden Status: Offline Points: 98 |
Post Options
Thanks(0)
Quote Reply
Posted: 03 Nov 2016 at 7:21am |
|
OK Tom , I see. But, it seems like a 2-stage takeoff.
May I request a button that takes me to FP Designer directly (with the data already created)? And I still want to name it acc. to IPC-std. Perhaps with a note/naming that user defined padstack is used. Cheers, ... |
|
|
|
|
Tom H
Admin Group
Joined: 05 Jan 2012 Location: San Diego, CA Status: Offline Points: 5718 |
Post Options
Thanks(0)
Quote Reply
Posted: 03 Nov 2016 at 7:29am |
|

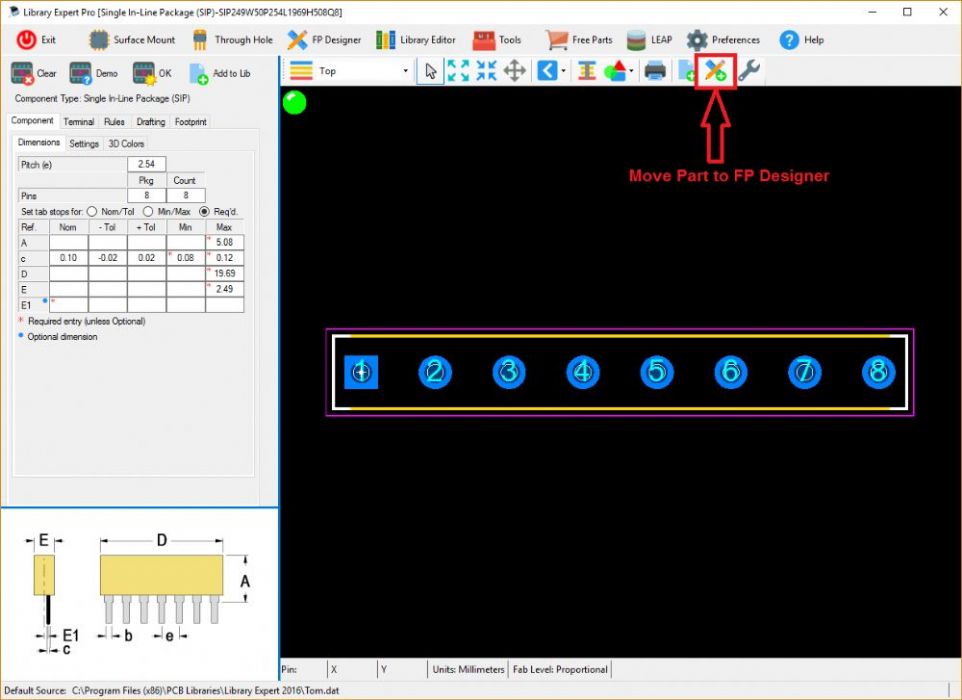

There is a button to move your Calculator part to FP Designer. However, these component families will not transfer - DPAK, TO220, TO92, Mounting Holes, Aluminum
Electrolytic Capacitor.  |
|
|
|
|
BennsPCB
Advanced User
Joined: 30 Jan 2013 Location: Sweden Status: Offline Points: 98 |
Post Options
Thanks(0)
Quote Reply
Posted: 03 Nov 2016 at 7:37am |
|
Tried that, but all data except the pins disappeared. Not very useful.
|
|
|
|
|
Tom H
Admin Group
Joined: 05 Jan 2012 Location: San Diego, CA Status: Offline Points: 5718 |
Post Options
Thanks(0)
Quote Reply
Posted: 03 Nov 2016 at 7:43am |
|

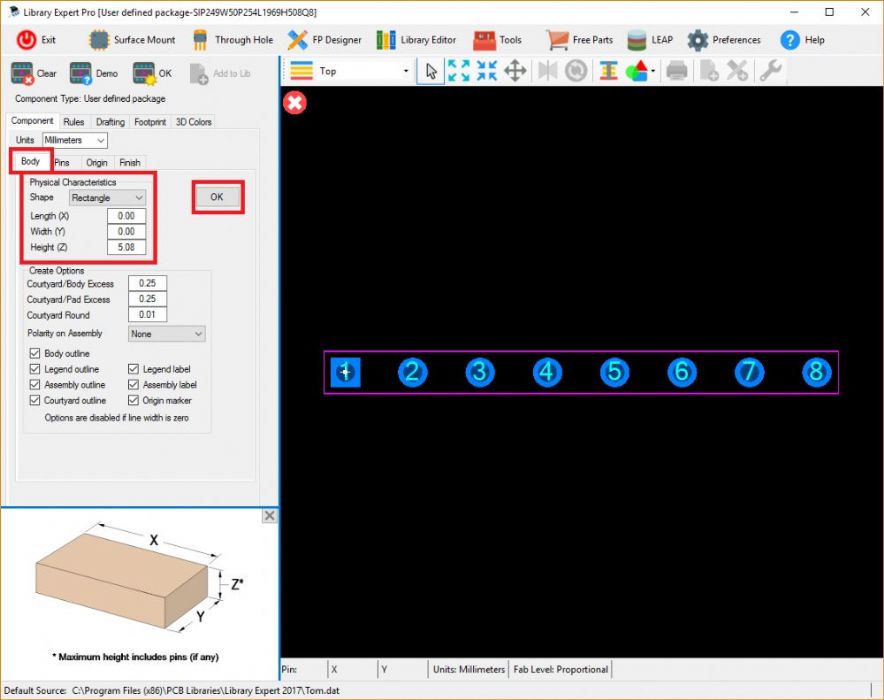

Did you select the "Body" tab and enter the package dimensions?  |
|
|
|
|
BennsPCB
Advanced User
Joined: 30 Jan 2013 Location: Sweden Status: Offline Points: 98 |
Post Options
Thanks(0)
Quote Reply
Posted: 03 Nov 2016 at 8:21am |
|
Nope, I came from Through Hole/Single In-Line Package (SIP), where I have entered all my data.
It's from here it would be useful to enter the FP Designer. (with data intact)   |
|
|
|
|
Tom H
Admin Group
Joined: 05 Jan 2012 Location: San Diego, CA Status: Offline Points: 5718 |
Post Options
Thanks(0)
Quote Reply
Posted: 03 Nov 2016 at 8:38am |
|
OK, this is a bug and we're going to release V2016.14 later today. In the meantime, you can create that 4-pin SIP in FP Designer with Oblong PTH pad stacks in less than 3 minutes. Thank you for reporting this issue. |
|
|
|
|
BennsPCB
Advanced User
Joined: 30 Jan 2013 Location: Sweden Status: Offline Points: 98 |
Post Options
Thanks(0)
Quote Reply
Posted: 03 Nov 2016 at 8:47am |
|
OK, nice
 Cheers, ... |
|
|
|
|
Nick B
Admin Group
Joined: 02 Jan 2012 Status: Offline Points: 1909 |
Post Options
Thanks(0)
Quote Reply
Posted: 03 Nov 2016 at 4:27pm |
|
2016.14 is online in our Downloads section, please run it and let us know.
|
|
|
|
|
