Output for Terminals?

 Post Reply Post Reply
Author
Message
rickdehart View Drop Down
Advanced User
Advanced User
Avatar

Joined: 18 Apr 2012
Location: Austin, TX
Status: Offline
Points: 184
Post Options Post Options   Thanks (0) Thanks(0)   Quote rickdehart Quote  Post ReplyReply Direct Link To This Post Topic: Output for Terminals?
    Posted: 25 Oct 2012 at 11:48am
Is the actual pin included with the 3D Model output?
Back to Top
Back to Top
rickdehart View Drop Down
Advanced User
Advanced User
Avatar

Joined: 18 Apr 2012
Location: Austin, TX
Status: Offline
Points: 184
Post Options Post Options   Thanks (0) Thanks(0)   Quote rickdehart Quote  Post ReplyReply Direct Link To This Post Posted: 25 Oct 2012 at 12:42pm

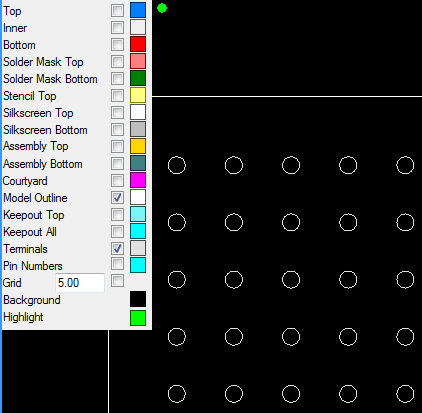

I am reffering to the CAD output from Footprint Expert.  The 3D Model outline is an output, but does not seem to include the terminal.  I would like to be able to get the Model Outline and Termninals on one layer of CAD output.

Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5717
Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 25 Oct 2012 at 12:48pm
The 3D Model outline is used for IDF export and only creates a polygon with Height. No leads or pins.

Back to Top
rickdehart View Drop Down
Advanced User
Advanced User
Avatar

Joined: 18 Apr 2012
Location: Austin, TX
Status: Offline
Points: 184
Post Options Post Options   Thanks (0) Thanks(0)   Quote rickdehart Quote  Post ReplyReply Direct Link To This Post Posted: 25 Oct 2012 at 1:39pm
Would it be possible on future versions to include Terminals as one of the layers to export to cad?  This way I can choose which layer to put it on.  It would help us to visualize the Body/Pins on top of the Land Pattern during Layout and DFM checks.

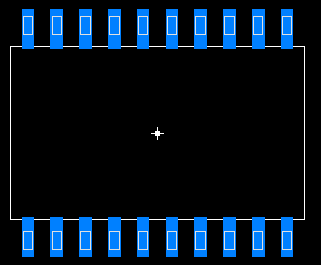

We would like to see this during DFM checks:

Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5717
Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 25 Oct 2012 at 1:42pm
The big issue is the CAD tool layer. We need to add a major feature that allows users to define additional layers for drafting items.

Back to Top
