Odd Mounting Hole

 Post Reply Post Reply
Author
Message
budnoel View Drop Down
Active User
Active User
Avatar

Joined: 16 Mar 2012
Status: Offline
Points: 17
Post Options Post Options   Thanks (0) Thanks(0)   Quote budnoel Quote  Post ReplyReply Direct Link To This Post Topic: Odd Mounting Hole
    Posted: 10 Aug 2012 at 6:59am

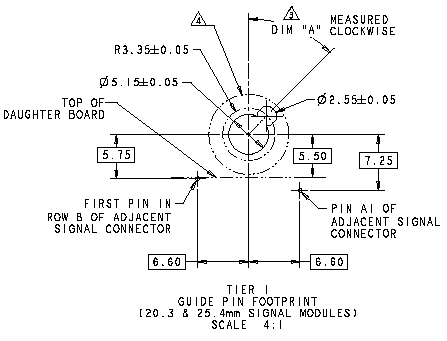

Hello - I need to create a mounting hole for a pin that requires two PTH's, a smaller one within the pad of a larger one.  I attempted to create a symbol using two padstacks and when I placed the second one I created a DRC error due to the overlapping of the two pads.  Anyone have any suggestions for how to create this symbol?  I've included a small section of the mfr dwg. to illustrate the issue.  Thanks in advance for any help.


Back to Top
rdl86626 View Drop Down
Advanced User
Advanced User
Avatar

Joined: 20 Jul 2012
Location: Hollister, CA
Status: Offline
Points: 83
Post Options Post Options   Thanks (0) Thanks(0)   Quote rdl86626 Quote  Post ReplyReply Direct Link To This Post Posted: 14 Aug 2012 at 7:37am

Notes 3 and 4 are missing. Maybe use 1 padstack and a fill for the other. Do you have a pic of it?

Rick
Back to Top
budnoel View Drop Down
Active User
Active User
Avatar

Joined: 16 Mar 2012
Status: Offline
Points: 17
Post Options Post Options   Thanks (0) Thanks(0)   Quote budnoel Quote  Post ReplyReply Direct Link To This Post Posted: 14 Aug 2012 at 9:04am
Note 4 indicates that there is a pad on top and bottom of pcb but it doesn't give the size.  Note 3 indicates what the angle of rotation for location of the second hole.   I created a 10.02 pad with a 5.15 hole for the first padstack and made it a pin.  The second smaller hole I simply created a 2.55 diam hole and placed it accordingly.  That seemed to work.  Thanks for the response.
Back to Top
Naveed Khan View Drop Down
Active User
Active User


Joined: 12 Mar 2013
Location: India
Status: Offline
Points: 20
Post Options Post Options   Thanks (0) Thanks(0)   Quote Naveed Khan Quote  Post ReplyReply Direct Link To This Post Posted: 13 Mar 2013 at 2:17am

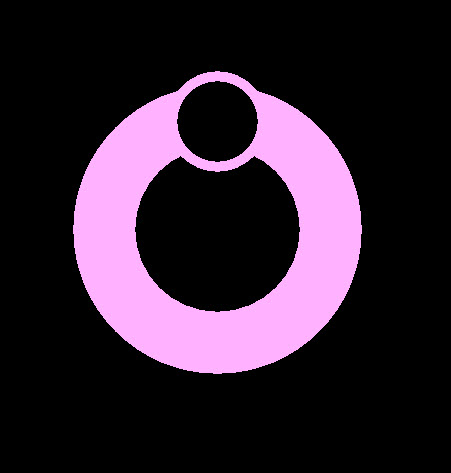

FP for same I have created pad over pad.

Mfr. Part No : 1-1469491-3


Back to Top
