Mounting Hole: What Does "Supported" Mean?
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
Guido View Drop Down
Active User
Active User


Joined: 21 Mar 2014
Status: Offline
Points: 25 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Guido Quote  Post ReplyReply Direct Link To This Post Topic: Mounting Hole: What Does "Supported" Mean?
    Posted: 16 Oct 2014 at 5:43am

Hello,

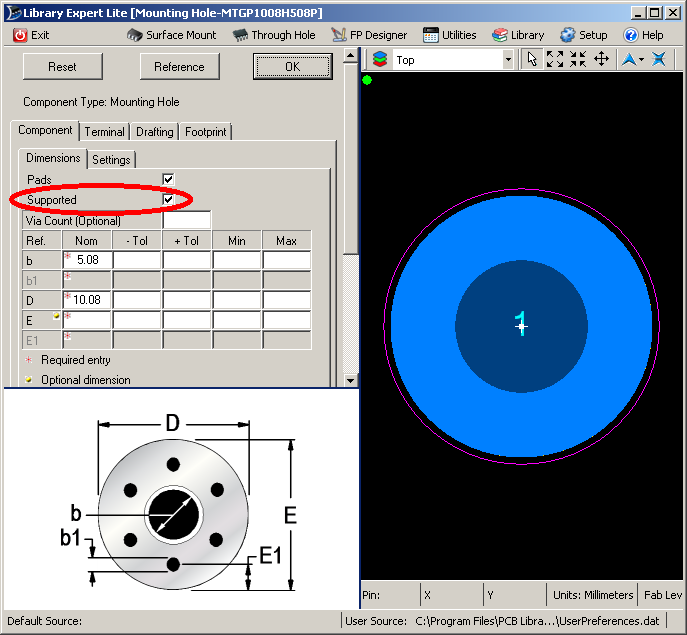

What is the difference between mounting holes which are created with checked/unchecked "Supported" option?

Is there any documentation about this feature? I use the Library Expert Lite 2013.20.



Best regards
Guido
Back to Top
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5716 		Post Options Post Options   Thanks (1) Thanks(1)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 16 Oct 2014 at 6:42am

These are IPC-7351 terms:

Supported = Plated

Unsupported = Non-plated
Stay connected - follow us! X - LinkedIn
Back to Top
Guido View Drop Down
Active User
Active User


Joined: 21 Mar 2014
Status: Offline
Points: 25 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Guido Quote  Post ReplyReply Direct Link To This Post Posted: 16 Oct 2014 at 6:59am
Hello Tom,

thank you for your support.

Best regards
Guido
Back to Top
Artwork Master ITALY View Drop Down
Active User
Active User
Avatar

Joined: 12 Mar 2012
Location: Milano ITALY
Status: Offline
Points: 43 		Post Options Post Options   Thanks (1) Thanks(1)   Quote Artwork Master ITALY Quote  Post ReplyReply Direct Link To This Post Posted: 16 Oct 2014 at 9:51am
If the programmer does not repute important to change the word "Supported" to "Plated"
He can add a tooltip that appear when the mouse go on the Check box icon that display the sentence:
"Supported means Plated, unchecked means Non-Plated"

Greetings.
Back to Top
Guido View Drop Down
Active User
Active User


Joined: 21 Mar 2014
Status: Offline
Points: 25 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Guido Quote  Post ReplyReply Direct Link To This Post Posted: 17 Oct 2014 at 2:38am
Hello,

this is a good suggestion.

Best regards
Guido
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5716 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 17 Oct 2014 at 7:38am
Guido... I noticed you are using V2013.20 which we released last February.

Why aren't you using V2014.11? It's available to you here - www.pcblibraries.com/Downloads

Also, we release V2014.12 today and if you Opt In for our Newsletter we'll provide all the Library Expert Lite update links in their. Register Here

If you install V2014.11 you will not recognize all the new features.

V2015.01 will be released in 2 weeks with many new features.

Stay connected - follow us! X - LinkedIn
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5716 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 17 Oct 2014 at 10:28am

OK, after further discussion with the programmers, we are changing the GUI text "Supported" to "Plated" in the next release V2014.12 coming out this weekend.

Thanks for the feedback and suggestions.
