Missing Tolerances
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
5not4 View Drop Down
Active User
Active User


Joined: 09 Jul 2013
Status: Offline
Points: 40 		Post Options Post Options   Thanks (0) Thanks(0)   Quote 5not4 Quote  Post ReplyReply Direct Link To This Post Topic: Missing Tolerances
    Posted: 18 Feb 2015 at 9:07am
Is there a 'typical' tolerance to be used when there is no value given on a datasheet?

For example - I need to make a footprint for OSCCC style crystal but no dimension is given for the D1 / E1 values (gap between the feet).

Nominal values are provided for foot width (X and Y) so the gap between can be calculated easily.

What tolerance should be used for an accurate footprint?

Any and all comments welcome and greatly appreciated.

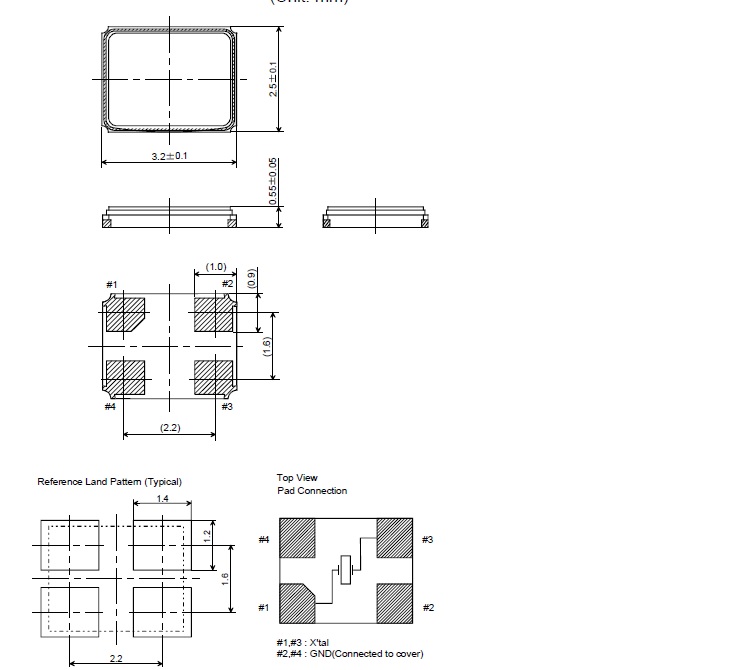

Datasheet example
Back to Top
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5718 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 18 Feb 2015 at 9:52am
Tolerances are normally +/- 0.20 mm for larger dimensions and between +/- 0.10 & 0.15 mm for small dimensions.

However, for the Corner Concave component family I tend to use the mfr. recommended pattern.
