Mismatch Between Options and HKP Data

Message Topic Search Topic Options Post Reply Create New Topic Printable Version Translate Topic

I am seeing a mismatch between the text height options and the output in the HKP files.

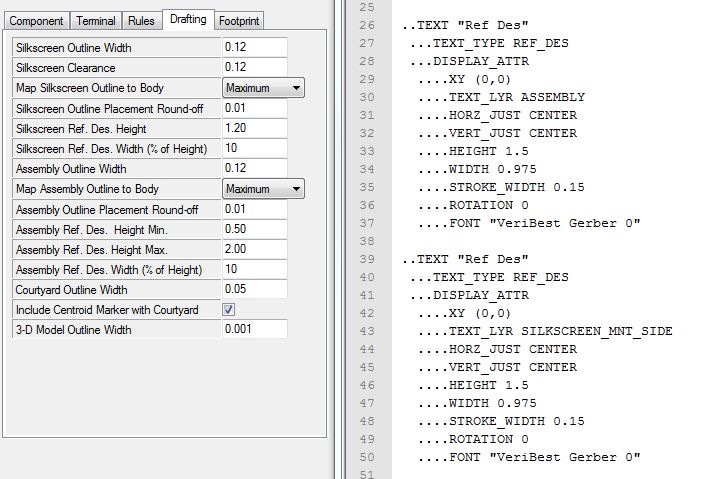

The settings in the tool are what I would expect based on the slides from the presentation.

Line width .12mm, SS height 1.2mm and Assembly 0.5-2.0mm.

However the HKPs simply are 1.5mm and .15mm linewidth.

It is possible that something isn't linked right in my setup or these parameters may not be making it to the output due to a software bug?

Author	Message Topic Search Topic Options Post Reply Create New Topic Printable Version Translate Topic
DaveCowl Members Profile Send Private Message Find Members Posts Add to Buddy List Advanced User Joined: 18 Oct 2012 Location: Santa Clara, CA Status: Offline Points: 161	Post Options Post Reply Quote DaveCowl Report Post Thanks(0) Quote Reply Topic: Mismatch Between Options and HKP Data Posted: 06 Nov 2012 at 1:25pm
	I am seeing a mismatch between the text height options and the output in the HKP files. The settings in the tool are what I would expect based on the slides from the presentation. Line width .12mm, SS height 1.2mm and Assembly 0.5-2.0mm. However the HKPs simply are 1.5mm and .15mm linewidth. It is possible that something isn't linked right in my setup or these parameters may not be making it to the output due to a software bug?



chrisa_pcb Members Profile Send Private Message Find Members Posts Add to Buddy List Moderator Group Joined: 29 Jul 2012 Location: San Diego Status: Offline Points: 772	Post Options Post Reply Quote chrisa_pcb Report Post Thanks(0) Quote Reply Posted: 06 Nov 2012 at 2:12pm
	As it currently stands, we don’t store text designator or text part type information. It's built to base defaults in the target tool itself upon translation and the user is expected to do what they will with the text post-translation.

DaveCowl Members Profile Send Private Message Find Members Posts Add to Buddy List Advanced User Joined: 18 Oct 2012 Location: Santa Clara, CA Status: Offline Points: 161	Post Options Post Reply Quote DaveCowl Report Post Thanks(0) Quote Reply Posted: 06 Nov 2012 at 2:37pm
	I don't really see the point of having these drafting settings if they don't make it into the file export...?!

Tom H Members Profile Send Private Message Find Members Posts Add to Buddy List Admin Group Joined: 05 Jan 2012 Location: San Diego, CA Status: Offline Points: 5719	Post Options Post Reply Quote Tom H Report Post Thanks(0) Quote Reply Posted: 21 Jul 2013 at 11:24am
	The Drafting Settings are your "User Preferences". Only the Physical Package Dimensions are stored in the FPX file. The way the PCB Library Expert works is - When the component dimensions and the user rules come together a footprint is created. User Rules change all the time, but package dimensions never change.
