Minimum Space Pad-to-Pad Not working

 Post Reply Post Reply
Author
Message
Eng. Jesus Mora View Drop Down
Advanced User
Advanced User
Avatar

Joined: 11 Jul 2013
Status: Offline
Points: 56
Post Options Post Options   Thanks (0) Thanks(0)   Quote Eng. Jesus Mora Quote  Post ReplyReply Direct Link To This Post Topic: Minimum Space Pad-to-Pad Not working
    Posted: 19 Dec 2016 at 2:52pm

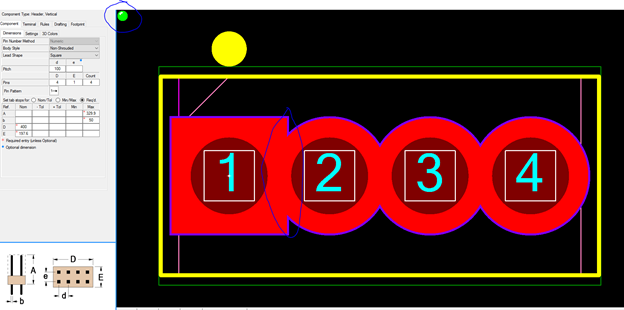

Our Minimum Space Pad-to-Pad rule is not working for our through hole components.

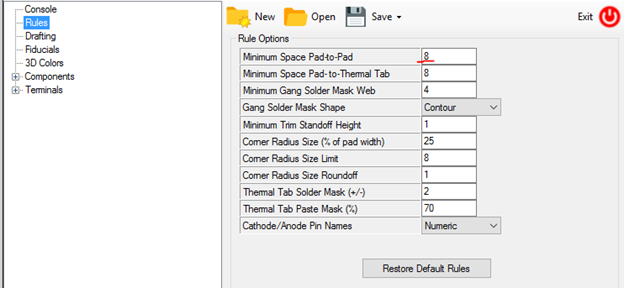

We have a minimum 8 mils space pad to pad, but when doing a th component it ignores this rule. How come?





Back to Top
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5718
Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 19 Dec 2016 at 2:59pm
Minimum Pad To Pad rule is for SMD only because Library Expert can only auto-trim SMD pads.

Library Expert cannot auto-trim through-hole pads.

We'll update the text in V2017.05 to read "Minimum SMD Space Pad to Pad"

In V2018 through-hole rule violations will throw an error message.

Stay connected - follow us! X - LinkedIn
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5718
Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 20 Dec 2016 at 11:22am
We just released V2017.05 pre-release with an updated Preference > Rules GUI text that clearly states that the Pad-to-Pad spacing rule is for SMD only.
