LED PLCC footprints

 Post Reply Post Reply
Author
Message
HenricE View Drop Down
Active User
Active User


Joined: 20 Nov 2013
Location: Sweden
Status: Offline
Points: 28
Post Options Post Options   Thanks (1) Thanks(1)   Quote HenricE Quote  Post ReplyReply Direct Link To This Post Topic: LED PLCC footprints
    Posted: 20 Nov 2013 at 6:30am
I've been wondering over the naming of certain LED footprints. Manufacturers call them PLCC-4, PLCC-6 etc etc. They have pins only on two sides and when compared to the typical PLCC footprints found in for example FPX they show pins on all four sides. Those particular PLCC footprints also appear to fit into sockets rather than directly soldered to the PCB. Looking through the FPX list of footprint types I suppose the Small Outline L-Lead fits better.

Which one is correct and what should the footprint actually be named?

Examples:

http://www.avagotech.com/docs/AV02-2592EN
http://www.vishay.com/doc?81183
Back to Top
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5716
Post Options Post Options   Thanks (2) Thanks(2)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 20 Nov 2013 at 7:09am

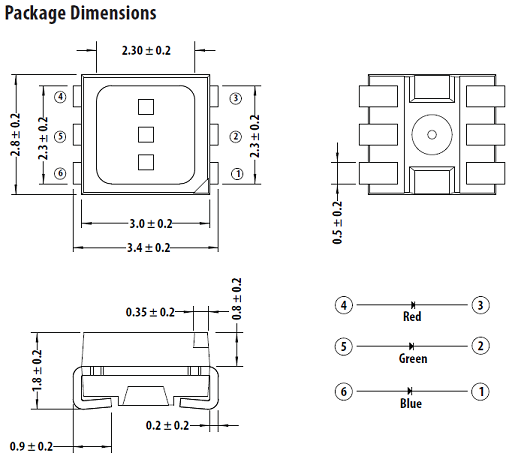

This Lead Form is "L-Bend" - (not PLCC)



We just added a "L-Bend" component lead for IC's. It's called the SOL component family.

Looks like we need to add a drop down to include other component families like LED.

There is also a "L-Bend" lead for Oscillators.

Stay connected - follow us! X - LinkedIn
Back to Top
HenricE View Drop Down
Active User
Active User


Joined: 20 Nov 2013
Location: Sweden
Status: Offline
Points: 28
Post Options Post Options   Thanks (1) Thanks(1)   Quote HenricE Quote  Post ReplyReply Direct Link To This Post Posted: 20 Nov 2013 at 7:15am
Thanks for the quick reply!

The SOL component family did look a lot more like the actual LEDs. It's strange how the manufacturers have chosen to call them PLCC.
Back to Top
