Leaded Horizontal TO-220 Pad Association

 Post Reply Post Reply
Author
Message
caclark View Drop Down
Advanced User
Advanced User


Joined: 24 Oct 2012
Location: Cincinnati, OH
Status: Offline
Points: 177
Post Options Post Options   Thanks (0) Thanks(0)   Quote caclark Quote  Post ReplyReply Direct Link To This Post Topic: Leaded Horizontal TO-220 Pad Association
    Posted: 20 Mar 2013 at 11:46am

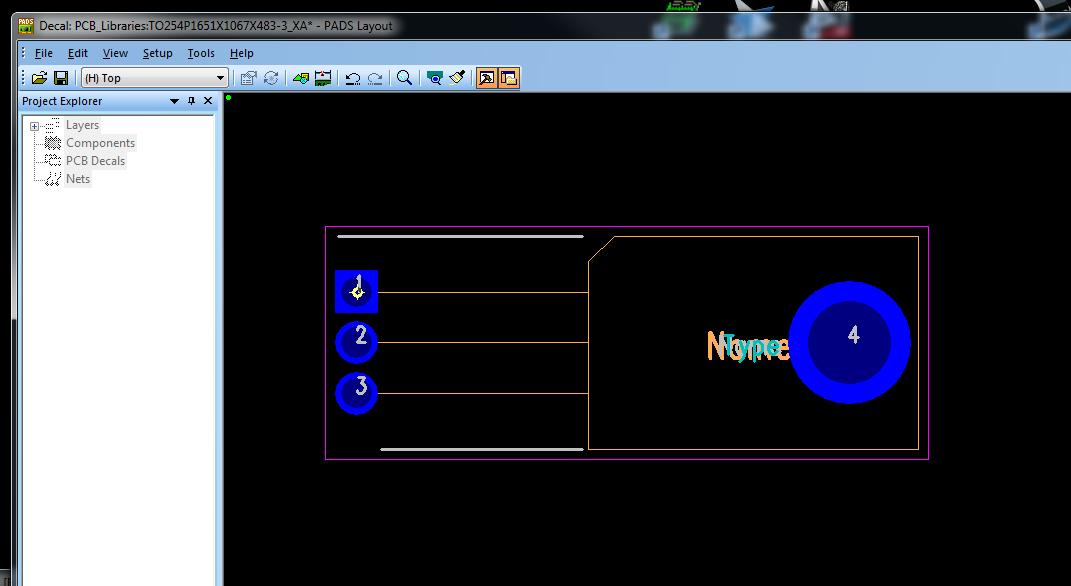

I am currently trying to build a TO-220 leaded transistor in PCB Libraries. All goes fine with the creation within the tool graphically, but when I import it into my PADS library (ver 9.3.1 if relevant) the 4 th pin does not have the large thermal pad associated to the hole (see image).

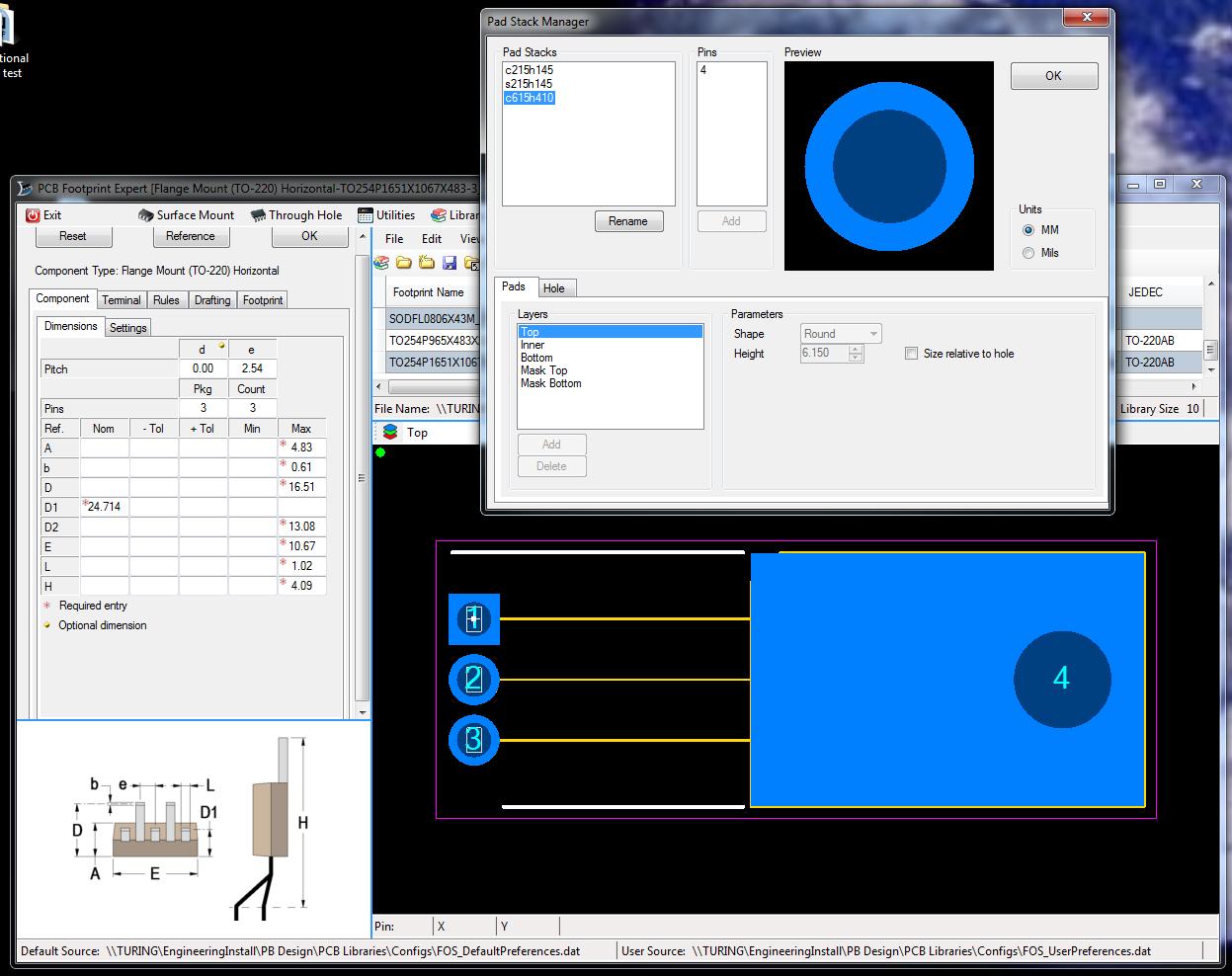

I also noticed that graphically the large pad shows as expected (see image).
However if I open the padstack viewer only the underlying hole is displayed there as well.

And as for the version I am on 2012.47

In any case I will add them directly to this post anyway.






Back to Top
Back to Top
rdl86626 View Drop Down
Advanced User
Advanced User
Avatar

Joined: 20 Jul 2012
Location: Hollister, CA
Status: Offline
Points: 83
Post Options Post Options   Thanks (0) Thanks(0)   Quote rdl86626 Quote  Post ReplyReply Direct Link To This Post Posted: 08 May 2013 at 12:17pm

I was also building a TO-220FP footprint, horizontal. I put the numbers in, saved it to my library, clicked on it again and it turns vertical with all the wrong dimensions, h was 16.4 now says it is 3.6.


I output it to OrCAD PCB Editor and it comes out ok. Also I don't understand what the b dimension is. Is it the thickness of the terminal?

I am using 0.51 version.

A little confused.
Rick
