JIS8030 case for SMT inductor

Message Topic Search Topic Options Post Reply Create New Topic Printable Version Translate Topic

Dear FPX developers,

I will be using a Taiyo Yuden SMT power inductor on my board. The closest I could get from FPX v2012.18 is the "DFN 2 Pin" package family generator.

The catalog of these Taiyo Yuden inductors are found here:
http://www.yuden.co.jp/productdata/catalog/en/wound04_e.pdf

Is the DFN 2 Pin the best generator for these parts? Do you think this needs another generator?

What term should I actually use for these "package family generators"?

Best regards,
Maarten Verhage

Author	Message Topic Search Topic Options Post Reply Create New Topic Printable Version Translate Topic
Maarten Verhage Members Profile Send Private Message Find Members Posts Add to Buddy List Active User Joined: 27 Jul 2012 Location: Netherlands Status: Offline Points: 27	Post Options Post Reply Quote Maarten Verhage Report Post Thanks(0) Quote Reply Topic: JIS8030 case for SMT inductor Posted: 17 Sep 2012 at 6:13am
	Dear FPX developers, I will be using a Taiyo Yuden SMT power inductor on my board. The closest I could get from FPX v2012.18 is the "DFN 2 Pin" package family generator. The catalog of these Taiyo Yuden inductors are found here: http://www.yuden.co.jp/productdata/catalog/en/wound04_e.pdf Is the DFN 2 Pin the best generator for these parts? Do you think this needs another generator? What term should I actually use for these "package family generators"? Best regards, Maarten Verhage



Tom H Members Profile Send Private Message Find Members Posts Add to Buddy List Admin Group Joined: 05 Jan 2012 Location: San Diego, CA Status: Offline Points: 5716	Post Options Post Reply Quote Tom H Report Post Thanks(0) Quote Reply Posted: 17 Sep 2012 at 7:54am

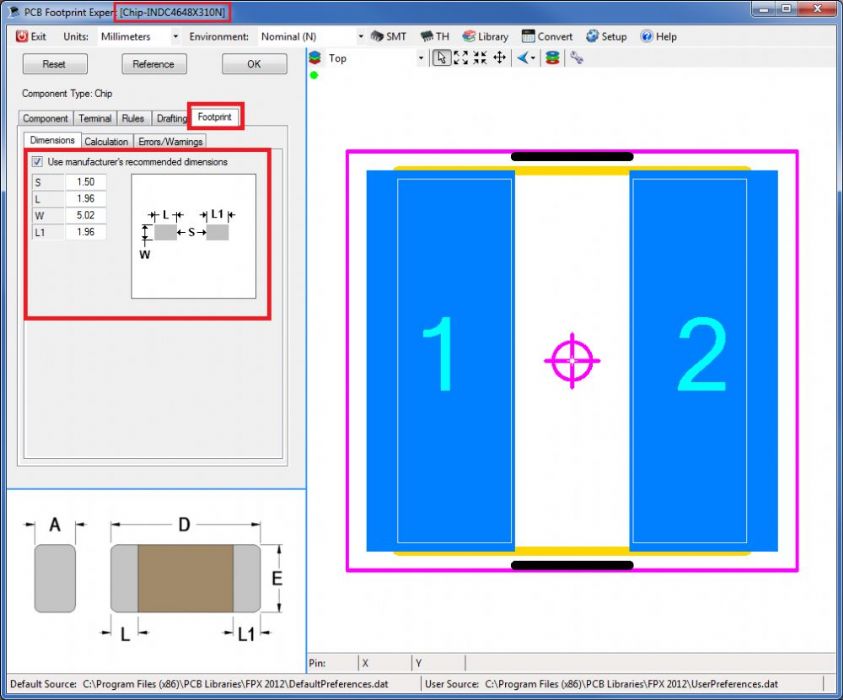

	I would use the "CHIP" component family "Inductors" and then I would select the "Footprint" tab and enter the Taiyo Yuden SMT power inductor recommended pattern dimensions.
