JEDEC Standard Footprints?

 Post Reply Post Reply
Author
Message
 Rating: Topic Rating: 1 Votes, Average 4.00  Topic Search Topic Search  Topic Options Topic Options
craig4tone View Drop Down
Advanced User
Advanced User


Joined: 29 Nov 2016
Status: Offline
Points: 95
Post Options Post Options   Thanks (0) Thanks(0)   Quote craig4tone Quote  Post ReplyReply Direct Link To This Post Topic: JEDEC Standard Footprints?
    Posted: 23 Jan 2017 at 11:53am
To precursor the discussion, I have been involved in PCB and ECAD Management for 25+ years.  I have worked exclusively as a Manager for Library Services company in the past and have seen it all both good and bad.

I am now working for a service-based company and we purchased Library Expert in order to maintain a centralized component database that we can export to various toolflows and with various settings (IPC-7351C vs. customer-specific, etc.)

In my experience, there is little merit in creating 20 variations of an SOIC-8 (3.9mm width) per manufacturer.  This only serves to make the library confusing as well as create potential problems with PCB re-use in the case of obsolescence.   I.e. TI disco's a PN and On Semi has a replacement but the "recommended pads" or tolerancing creates a wider IPC-7351C pattern that creates a DRC if replaced and the PCB MUST remain the same for compliance reasons (UL, FCC, etc.).  I also have "friends" that work for un-named chip vendors and the "recommended footprints" and package drawings are most often a joke as the datasheets are created by interns and that info is often copy/pasted from unknown sources and/or Google.  LOL

With that being said, where can I find JEDEC package mechanical drawings to build parametric libraries from?

I am thinking of standardizing things such as SOT, SOIC, chip components, molded body caps, SM* diodes, etc.  What if any standardization of footprints have any of you attempted?  I'm even toying with the idea of combining resistor and cap 0402 into a single "RC0402" package with a worst case ceramic cap height.
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5657
Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 23 Jan 2017 at 12:03pm
For the standard JEDEC package dimensions - http://www.jedec.org/

However, very few mfr.'s use these.

SOIC = MO-059, -099, -119, -120
SOP40 = MO-154
SOP65 = MO-150

Just register on JEDEC.org and download all MS, MO, DO and TO PDF files.



Stay connected - follow us! X - LinkedIn
Back to Top
craig4tone View Drop Down
Advanced User
Advanced User


Joined: 29 Nov 2016
Status: Offline
Points: 95
Post Options Post Options   Thanks (0) Thanks(0)   Quote craig4tone Quote  Post ReplyReply Direct Link To This Post Posted: 23 Jan 2017 at 12:14pm
Thanks for the JEDEC info ... I just assumed is was pay-to-play like IEEE papers.

Can you please clarify what you mean by "very few mfr.'s use these"?

The parts are created at an IC packaging facility of which several manufacturer's share the same facilities and SOT, SOIC, TSSOP, etc. are all built to JEDEC standards because of existing tooling that was created back when SMT adopted the standards.  Granted, the newer, unique packages such as the PDSON-8, thermal pad devices, etc. are the exception to that rule, but I am referring to the "industry standard" parts like 0402 resistors, SOT23-3, SOT23-5, SOIC8, SOIC8W, SMA, SMB, SMC, EIA molded body, etc.
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5657
Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 23 Jan 2017 at 12:18pm
When you download the JEDEC datasheets and look at the package dimensions, try to match them with your mfr.'s package dimensions.

You will find out that they are close but not a direct match.

I think that mfr.'s need to pay JEDEC a royalty if they use their package dimensions. Therefore they change them slightly.

But I agree with you in that one SOIC8 footprint should be good for all, but only if the package dimensions are within a 0.20 mm tolerance of each other.

Stay connected - follow us! X - LinkedIn
Back to Top
Louis_Guerin View Drop Down
Active User
Active User
Avatar

Joined: 29 Jan 2013
Location: Quebec
Status: Offline
Points: 24
Post Options Post Options   Thanks (0) Thanks(0)   Quote Louis_Guerin Quote  Post ReplyReply Direct Link To This Post Posted: 23 Jan 2017 at 12:21pm
JEDEC pacjkage are on http://www.jedec.org/category/technology-focus-area/jc-10/registered-outlines-jep95

As Tom mentionned you have to register to have them.

As for the RC0402 I've though of it once, however PCB patterns cap are a bit wider than resistors because of sides that can be soldered which is not the case for resistors and in some case this extra surface could cause placement problem on crowded PCB.
Of course you can use the resistor pattern for both of them but then why cap have component end covered on all side and not the resistor?
Could somebody enlight us on this? Question
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5657
Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 23 Jan 2017 at 12:46pm
You need separate Chip land patterns for Capacitors and Resistors.

Capacitors should have a side fillet and Resistors do not.

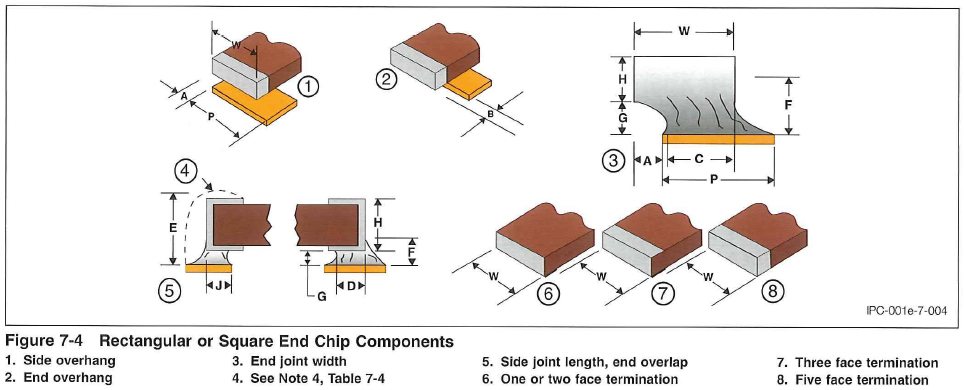

However, IPC says that the same pattern can be used for both because the Side Fillet is not required per IPC-J-STD-001.

They do mention in Note 3 that there should be "Visible Wetting" but that's not possible with chips that do not have a terminal lead wraparound.

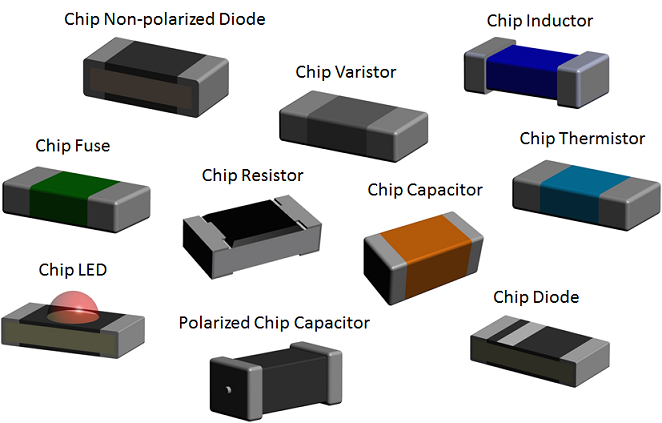

Here are 3D models created by Library Expert Pro.


Stay connected - follow us! X - LinkedIn
