    Posted: 07 Apr 2024 at 1:13pm

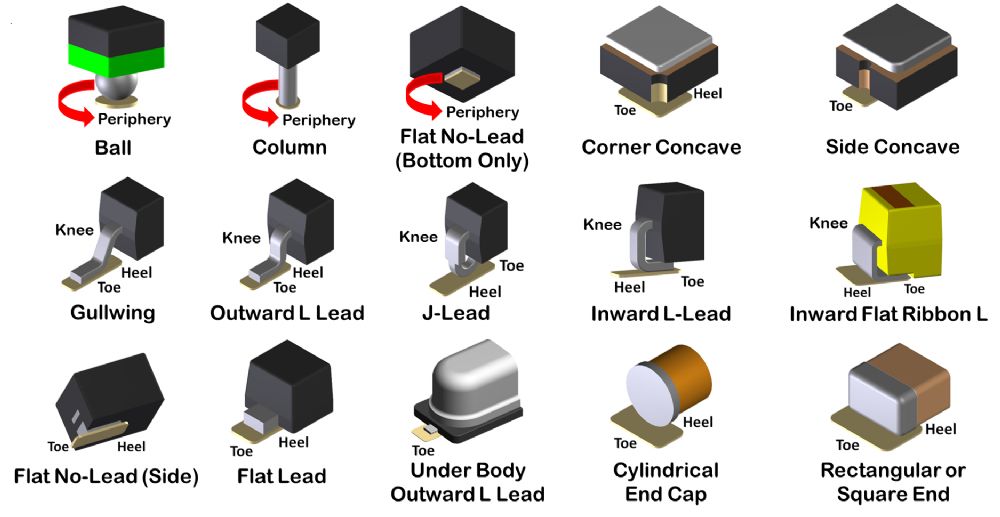

Here are the 15 Standard Surface Mount Terminal Lead Forms represented in the IPC-7351 and IPC-7352.

The first bend in the lead is referred to as the Knee. The second bend is the Heel and the end of the lead is the Toe.

For Grid Array and BTC leads, the solder joint goal is a Periphery.



Stay connected - follow us! X - LinkedIn
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5675
Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 07 Apr 2024 at 1:19pm

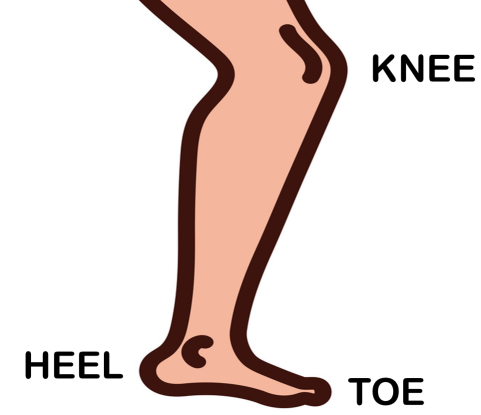

The anatomy of the human leg is used to determine the Surface Mount Toe and Heel of the solder joint definition.
