   I made a BGA part and would like to update the padstack on it.
The part is already imported into a library.
If I show the footprint and then modify it, how do I get the changes to update.
Clicking on import footprint again just adds another row with the same footprint name, but the changes are not there.

Author	Message Topic Search Topic Options Post Reply Create New Topic Printable Version Translate Topic
bleslie82 Members Profile Send Private Message Find Members Posts Add to Buddy List New User Joined: 06 Dec 2013 Status: Offline Points: 19	Post Options Post Reply Quote bleslie82 Report Post Thanks(1) Quote Reply Topic: How Do You Modify a Part That You Already Imported Posted: 16 Jan 2014 at 8:02pm
	I made a BGA part and would like to update the padstack on it. The part is already imported into a library. If I show the footprint and then modify it, how do I get the changes to update. Clicking on import footprint again just adds another row with the same footprint name, but the changes are not there.



Tom H Members Profile Send Private Message Find Members Posts Add to Buddy List Admin Group Joined: 05 Jan 2012 Location: San Diego, CA Status: Offline Points: 5761	Post Options Post Reply Quote Tom H Report Post Thanks(1) Quote Reply Posted: 16 Jan 2014 at 8:09pm
	Are you trying to - Import a library into your CAD tool? Import the updated component dimensions into a FPX file? Did you use the Calculator to input the component dimensions? Did you use the Footprint Designer to enter the mfr. recommended footprint dimensions? Let us know your situation.
	Stay connected - follow us! X - LinkedIn

bleslie82 Members Profile Send Private Message Find Members Posts Add to Buddy List New User Joined: 06 Dec 2013 Status: Offline Points: 19	Post Options Post Reply Quote bleslie82 Report Post Thanks(1) Quote Reply Posted: 20 Jan 2014 at 6:51pm
	Tom, I made a BGA and imported it into an .fpx library. I now want to change the pad to increase the solder mask opening and replace the part that is in the .fpx library. Here are the steps that I was trying to use. Select the part in the fpx library Edit padstack (footprint graphics get updated) Try to import the changed part back into the fpx library

Tom H Members Profile Send Private Message Find Members Posts Add to Buddy List Admin Group Joined: 05 Jan 2012 Location: San Diego, CA Status: Offline Points: 5761	Post Options Post Reply Quote Tom H Report Post Thanks(0) Quote Reply Posted: 20 Jan 2014 at 9:13pm
	I still don't know if you used the IPC Calculator or FP Designer to create the BGA footprint. It sounds to me like you used FP Designer, so it must be a non-standard BGA. Is this true?
	Stay connected - follow us! X - LinkedIn

Tom H Members Profile Send Private Message Find Members Posts Add to Buddy List Admin Group Joined: 05 Jan 2012 Location: San Diego, CA Status: Offline Points: 5761	Post Options Post Reply Quote Tom H Report Post Thanks(0) Quote Reply Posted: 21 Jan 2014 at 8:08am

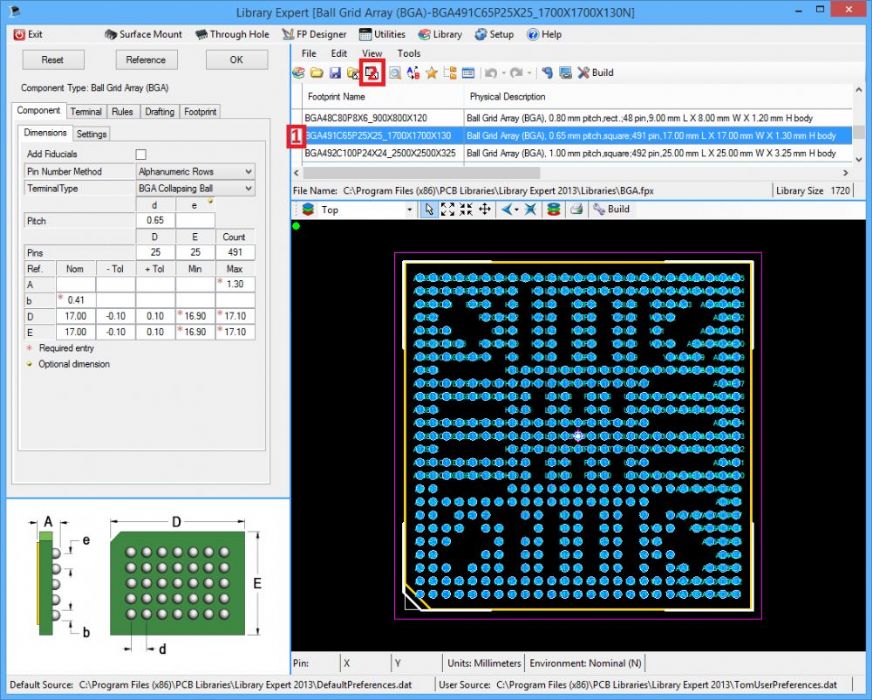

	Regardless if you created the BGA using the IPC Calculator or the Footprint Designer, they both get updated into your FPX library that same way. Open your FPX library and select the Gray Button (ITEM 1) to the left of the Footprint name to highlight the entire row. Then select the "Insert Part" icon (ITEM 2) in the toolbar and it will automatically update your FPX library line item with your Component Dimensional changes or your FP Designer mfr. recommended footprint changes - You will get prompted to "Update Selected Item" -
	Stay connected - follow us! X - LinkedIn

bleslie82 Members Profile Send Private Message Find Members Posts Add to Buddy List New User Joined: 06 Dec 2013 Status: Offline Points: 19	Post Options Post Reply Quote bleslie82 Report Post Thanks(1) Quote Reply Posted: 21 Jan 2014 at 11:40am
	Tom, Thanks that is exactly what I was looking for!
