Error in J-Lead Step-Models?
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
ronald View Drop Down
Active User
Active User


Joined: 01 Nov 2018
Status: Offline
Points: 20 		Post Options Post Options   Thanks (1) Thanks(1)   Quote ronald Quote  Post ReplyReply Direct Link To This Post Topic: Error in J-Lead Step-Models?
    Posted: 15 Nov 2018 at 5:45am
Hello,

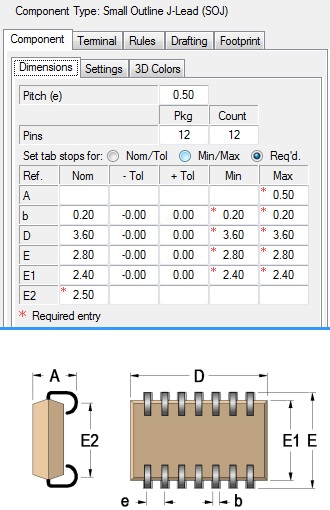

I tried to generate a Step-Model for a SOJ Part with this settings:

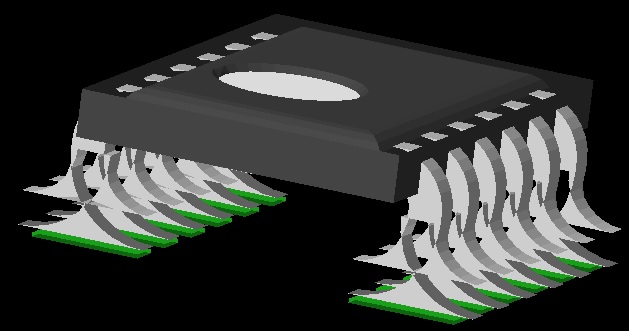

And thats what I got as Step-Model:


Am I doing something wrong or is this an error in Library Expert?
I´m using Library Expert Pro 2018.07

Thank you,
Ronald

Edit: I just tired Version 2018.08 and got the same result.
Back to Top
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5780 		Post Options Post Options   Thanks (1) Thanks(1)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 15 Nov 2018 at 8:13am
There are several things that are wrong.
  1. The footprint is generated by the package dimensions and Tolerances and you did not insert the tolerances
  2. There is no such thing as a 0.50 mm Height SOJ package. The average Height is 3.55 - 3.79 mm
  3. There is no such thing as a 0.50 mm Pitch SOJ. SOJ is a 1.27 mm pitch part
  4. Your package may be a SOL package and you picked the wrong component family
  5. You did not post a URL link to the component datasheet, so there is little we can do to help you
Stay connected - follow us! X - LinkedIn
Back to Top
ronald View Drop Down
Active User
Active User


Joined: 01 Nov 2018
Status: Offline
Points: 20 		Post Options Post Options   Thanks (1) Thanks(1)   Quote ronald Quote  Post ReplyReply Direct Link To This Post Posted: 15 Nov 2018 at 8:47am

The height is actually wrong, I must have mistyped it, when I did the screenshot.
But I get a similar result, when using the using the correct 1.2mm.

I only need the Step-Model, so I didn´t bother to type in the tolerances.

The SOL Packge doesn´t offer a 12 Pin Version.
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5780 		Post Options Post Options   Thanks (1) Thanks(1)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 15 Nov 2018 at 8:51am
That is a Small Outline L-Lead (SOL).

And the package Height is 1.20 mm (not 0.50 mm).
Stay connected - follow us! X - LinkedIn
Back to Top
ronald View Drop Down
Active User
Active User


Joined: 01 Nov 2018
Status: Offline
Points: 20 		Post Options Post Options   Thanks (1) Thanks(1)   Quote ronald Quote  Post ReplyReply Direct Link To This Post Posted: 15 Nov 2018 at 9:08am
As i worte there is no 12 pin version of the SOL Package.
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5780 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 15 Nov 2018 at 9:19am
OK, we'll add a 10 and 12 pin version in the V2018.09 pre-release ASAP.
Stay connected - follow us! X - LinkedIn
Back to Top
ronald View Drop Down
Active User
Active User


Joined: 01 Nov 2018
Status: Offline
Points: 20 		Post Options Post Options   Thanks (0) Thanks(0)   Quote ronald Quote  Post ReplyReply Direct Link To This Post Posted: 15 Nov 2018 at 9:32am
Cool, thank you!
Back to Top
Nick B View Drop Down
Admin Group
Admin Group


Joined: 02 Jan 2012
Status: Offline
Points: 1953 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Nick B Quote  Post ReplyReply Direct Link To This Post Posted: 15 Nov 2018 at 11:00am
Please get the 2018.09 pre-release from www.PCBLibraries.com/Downloads, it has new updated feature.
Stay connected - follow us! X - LinkedIn
Back to Top
Nick B View Drop Down
Admin Group
Admin Group


Joined: 02 Jan 2012
Status: Offline
Points: 1953 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Nick B Quote  Post ReplyReply Direct Link To This Post Posted: 15 Nov 2018 at 11:01am
NOTE: only the Enterprise version is released in pre-release. If you're using the free version(s), this won't be available for another 2-3 weeks.
Stay connected - follow us! X - LinkedIn
