Eagle CAD tool: Rectangle Converted Into Square
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
Bharat_Verma View Drop Down
Advanced User
Advanced User


Joined: 10 Feb 2021
Status: Offline
Points: 65 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Bharat_Verma Quote  Post ReplyReply Direct Link To This Post Topic: Eagle CAD tool: Rectangle Converted Into Square
    Posted: 21 Nov 2022 at 2:14am
Hi Tom,

One more issue with rectangle pads becoming square in Eagle output files.

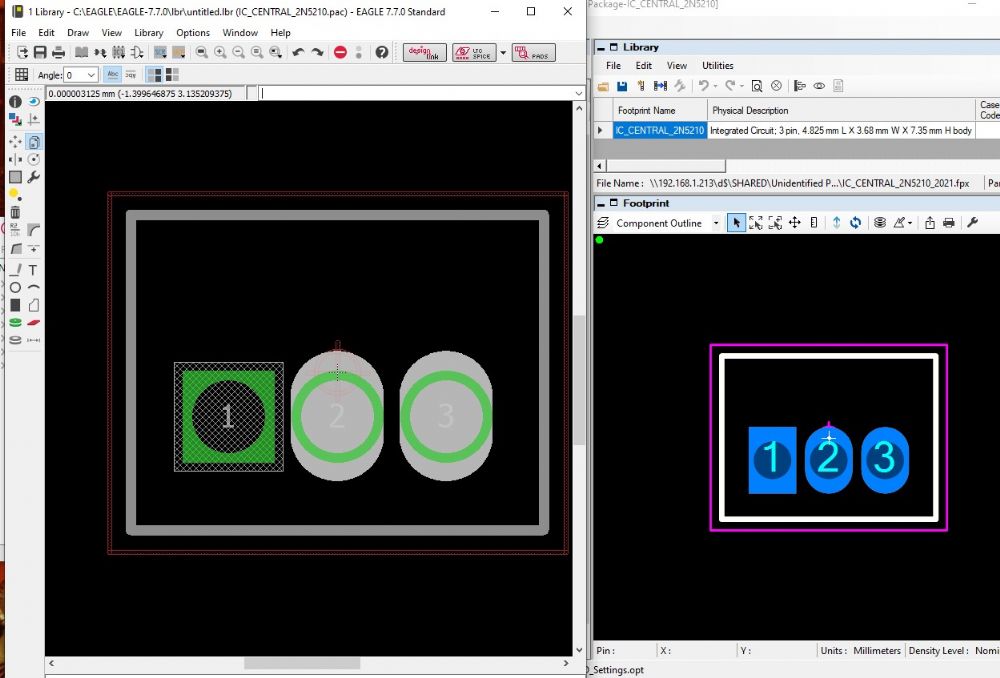

See the pin 1 in below Image.


Back to Top
Back to Top
Jeff.M View Drop Down
Admin Group
Admin Group


Joined: 16 May 2012
Location: San Diego
Status: Offline
Points: 477 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Jeff.M Quote  Post ReplyReply Direct Link To This Post Posted: 20 May 2023 at 8:39am
Can a sample of the proper format for an oblong and rectangular through-hole in an Eagle scr please be provided?
Stay connected - follow us! Twitter - LinkedIn
Back to Top
Bharat_Verma View Drop Down
Advanced User
Advanced User


Joined: 10 Feb 2021
Status: Offline
Points: 65 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Bharat_Verma Quote  Post ReplyReply Direct Link To This Post Posted: 29 May 2023 at 9:45pm
Hi Jeff ,

Please find attached .lbr and .fpx file for your reference.
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5718 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 12 Jul 2023 at 12:40pm
Was this fixed? Please confirm.
Stay connected - follow us! X - LinkedIn
Back to Top
Jeff.M View Drop Down
Admin Group
Admin Group


Joined: 16 May 2012
Location: San Diego
Status: Offline
Points: 477 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Jeff.M Quote  Post ReplyReply Direct Link To This Post Posted: 12 Jul 2023 at 3:29pm
Please provide an example of both an FPE translation to Eagle .scr file that is wrong and another version of that same file that has been edited correct this error.  That will allow us to compare and correct the discrepancy.
Thank you.
Stay connected - follow us! Twitter - LinkedIn
Back to Top
Bharat_Verma View Drop Down
Advanced User
Advanced User


Joined: 10 Feb 2021
Status: Offline
Points: 65 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Bharat_Verma Quote  Post ReplyReply Direct Link To This Post Posted: 13 Jul 2023 at 1:01am
Hi Jeff,

Please find attached zip file with FPX, LBR and SCR file.

This issue is not resolved in version 23.09.uploads/15710/Rectangle_pad_Version-9.zip
Back to Top
Bharat_Verma View Drop Down
Advanced User
Advanced User


Joined: 10 Feb 2021
Status: Offline
Points: 65 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Bharat_Verma Quote  Post ReplyReply Direct Link To This Post Posted: 11 Aug 2023 at 3:04am
Hello Team ,

Any news on reported issue ?
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5718 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 16 Aug 2023 at 12:35pm

The latest V23.11 is released – www.pcblibraries.com/downloads

Download and install it.

This issue with the rectangular pad shape coming into Eagle as a square is fixed.

Thank you for reporting this issue.
Stay connected - follow us! X - LinkedIn
Back to Top
Jeff.M View Drop Down
Admin Group
Admin Group


Joined: 16 May 2012
Location: San Diego
Status: Offline
Points: 477 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Jeff.M Quote  Post ReplyReply Direct Link To This Post Posted: 27 Sep 2023 at 8:47am
Eagle can't create a rectangle pad on a through hole.
Stay connected - follow us! Twitter - LinkedIn
