DQFN - Dual Row Quad Flat No-lead
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
rforney View Drop Down
New User
New User


Joined: 01 May 2013
Location: Alabama
Status: Offline
Points: 5 		Post Options Post Options   Thanks (0) Thanks(0)   Quote rforney Quote  Post ReplyReply Direct Link To This Post Topic: DQFN - Dual Row Quad Flat No-lead
    Posted: 12 May 2014 at 5:57am
Any recomendations on how to create a DQFN.
Back to Top
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5716 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 12 May 2014 at 6:41am

Can you please post a web-link to a datasheet?

We have some of those in our library.

We use the Footprint Designer to easily create complex Dual Row Quad Flat No-lead footprints.

See here -

http://www.pcblibraries.com/forum/video-create-a-multirow-qfn_topic971.html

Stay connected - follow us! X - LinkedIn
Back to Top
rforney View Drop Down
New User
New User


Joined: 01 May 2013
Location: Alabama
Status: Offline
Points: 5 		Post Options Post Options   Thanks (0) Thanks(0)   Quote rforney Quote  Post ReplyReply Direct Link To This Post Posted: 12 May 2014 at 7:15am

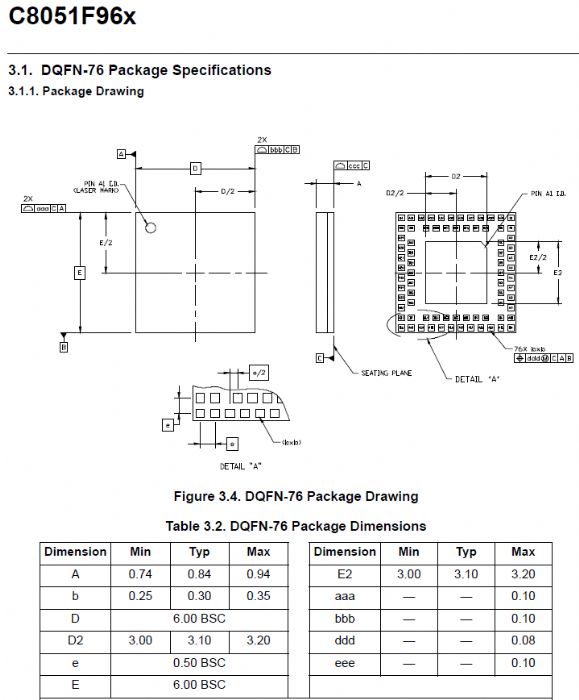

This is the datasheet I'm working from.  All I really need is the step model. I've created the footprint manually in Cadence.

Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5716 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 12 May 2014 at 7:53am

That's the problem with creating footprints in the CAD tool. The CAD tool does not auto-generate the 3D Model and you can't share the footprint with the global electronics industry on POD for every CAD tool.

Build your footprints in FP Designer and you will be the only person on the planet who has to build that part and share the FPX file with everyone else.

We need to eliminate duplication and we need your help.

Stay connected - follow us! X - LinkedIn
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5716 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 12 May 2014 at 8:16am
The Library Expert "FP Designer" could create this DQFN faster then the native CAD tool and auto-generate the 3D Model and you could share the FPX file with everyone else in the electronics industry regardless of what CAD tool they use by uploading the FPX file to "Parts on Demand" (POD).


We'll never eliminate library construction duplication of effort if parts are not created in FP Designer, where the footpint and 3D STEP model are Built Once, Built Right and Never Built Again.

Stay connected - follow us! X - LinkedIn
Back to Top
Nick B View Drop Down
Admin Group
Admin Group


Joined: 02 Jan 2012
Status: Offline
Points: 1906 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Nick B Quote  Post ReplyReply Direct Link To This Post Posted: 12 May 2014 at 1:00pm
This part is now on POD: www.PCBLibraries.com/POD
Stay connected - follow us! X - LinkedIn
Back to Top
