Dome Switch Padstack creation
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
kowalski22 View Drop Down
Active User
Active User


Joined: 05 Dec 2014
Status: Offline
Points: 15 		Post Options Post Options   Thanks (0) Thanks(0)   Quote kowalski22 Quote  Post ReplyReply Direct Link To This Post Topic: Dome Switch Padstack creation
    Posted: 19 Dec 2014 at 7:33am

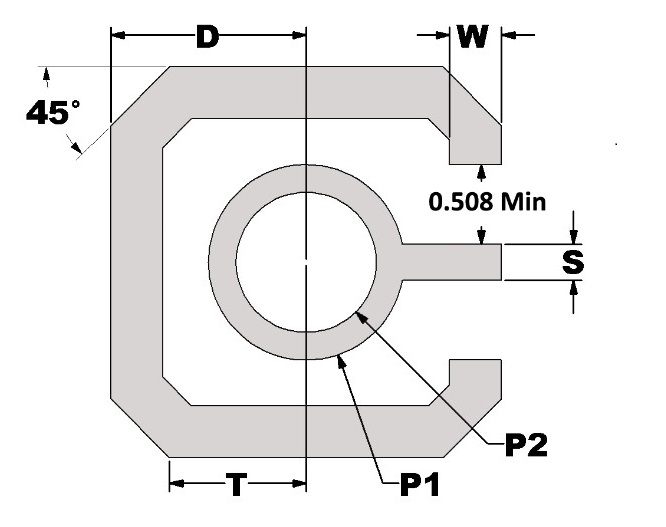

Is there a way to create a dome switch padstack?  See the pic below....

Back to Top
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5716 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 19 Dec 2014 at 9:03am

We can absolutely create this pad stack in FPX format but only through "Request a Part" on www.pcblibraries.com/POD

We have a library staff that has access to a internal interactive editor.

If you "Request a Part" then we build it for you and make it available for everyone else on "Parts on Demand" (POD).

The FPX file would be XML format that we're currently testing with every CAD tool great results.
