Density Option For BGA's
 Post Reply Post Reply
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
diverger View Drop Down
Active User
Active User
Avatar

Joined: 15 Mar 2013
Status: Offline
Points: 36 		Post Options Post Options   Thanks (0) Thanks(0)   Quote diverger Quote  Post ReplyReply Direct Link To This Post Topic: Density Option For BGA's
    Posted: 30 Jul 2022 at 3:07am
I can't remember starting from which version the Footprint Expert removed the density option when generate the BGA footprint. Can somebody explain why?

Thanks
Back to Top
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5718 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 30 Jul 2022 at 9:39am
There are 3-Tiers for both Collapsing and Non-Collapsing BGA.

The 3-Tiers are broken down by Ball Diameter.

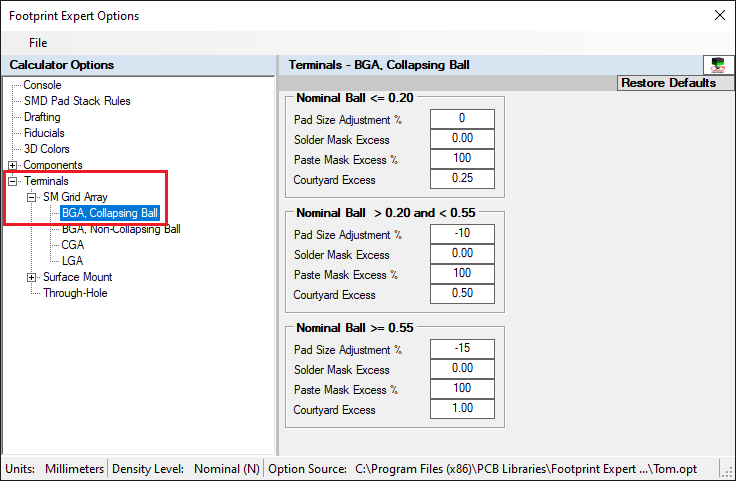

Here is V2022.10 Options:



Stay connected - follow us! X - LinkedIn
Back to Top
diverger View Drop Down
Active User
Active User
Avatar

Joined: 15 Mar 2013
Status: Offline
Points: 36 		Post Options Post Options   Thanks (0) Thanks(0)   Quote diverger Quote  Post ReplyReply Direct Link To This Post Posted: 31 Jul 2022 at 2:15am
Thanks for your reply. But where I can call out this wizard? In my free version, the 'option' menu item under 'Tools' is grayed. Confused Or it's a feature only valid in the non-free version?
Back to Top
diverger View Drop Down
Active User
Active User
Avatar

Joined: 15 Mar 2013
Status: Offline
Points: 36 		Post Options Post Options   Thanks (0) Thanks(0)   Quote diverger Quote  Post ReplyReply Direct Link To This Post Posted: 31 Jul 2022 at 2:29am
And it seems the density option for BGA is not like other package style simply with density option 'L,M,N'. For a given 'Nominal' ball size, it will only generate 'one' footprint, right?

Thanks.
Back to Top
Tom H View Drop Down
Admin Group
Admin Group
Avatar

Joined: 05 Jan 2012
Location: San Diego, CA
Status: Offline
Points: 5718 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Tom H Quote  Post ReplyReply Direct Link To This Post Posted: 31 Jul 2022 at 8:03am
The Gullwing, J-Lead, Flat Lead have a Toe, Heel and Side solder joint goal and have 3 varitations for the pad sizes.

There is only one pad size that is perfect for BGA's per the Ball Diameter.

You can upgrade from the Free Footprint Expert Pro to the full featured Footprint Enterprise for $99.

The Pro version does not have Batch Build, FP Designer for non-standard packages and Global Options are turned off. But by upgrading to Enterprise all these features are turned on.

But in the Pro version, you have access to the local Options on the left side panels. Open the Terminal Density Level to change the settings locally. However, if you save the package dimensions to the Library Editor, none of the local options are saved to the FPX file.
